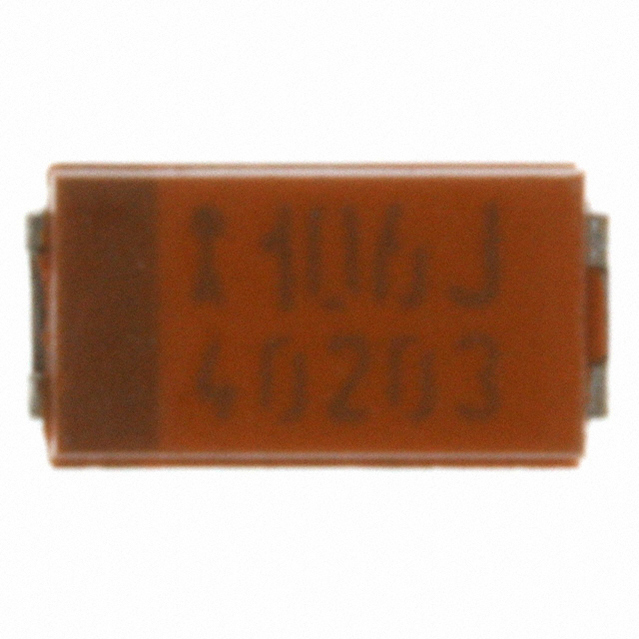

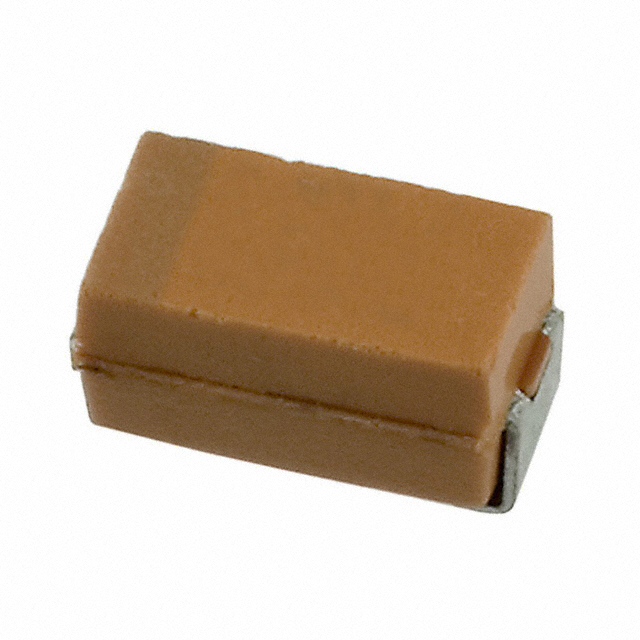

AVX NOSA106M006R2000 电容, 10UF 6.3V A封装
This niobium electrolytic capacitor made from uses passivated niobium metal or niobium monoxide for the anode electrode and niobium pentoxide as the dielectric and does not exhibit any piezo effect and has no voltage dependence. It can withstand a voltage of 6.3 VDC. This niobium oxide capacitor has a maximum operating temperature of 125 °C. Its leakage current is 1.2 μA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 20%. Its capacitance value is 10uF.
额定电压DC 6.3 V
电容 10 µF
等效串联电阻ESR 2 Ω
容差 ±20 %
纹波电流 212 mA
工作温度Max 125 ℃
工作温度Min 125 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
介质材料 Niobium Oxide
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automotive, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
NOSA106M006R2000 AVX 艾维克斯 | 当前型号 | 当前型号 |
TCJA106M006R0300 艾维克斯 | 类似代替 | NOSA106M006R2000和TCJA106M006R0300的区别 |
NOSA106M006R0800 艾维克斯 | 类似代替 | NOSA106M006R2000和NOSA106M006R0800的区别 |
NOSA106M006R1000 艾维克斯 | 类似代替 | NOSA106M006R2000和NOSA106M006R1000的区别 |
