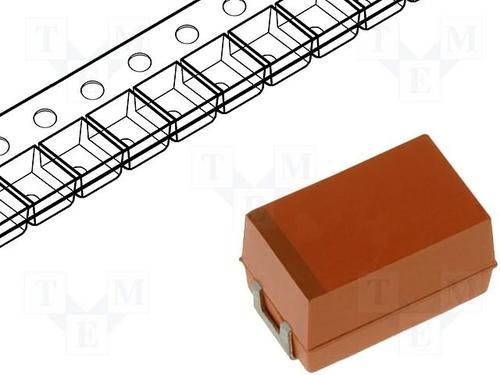

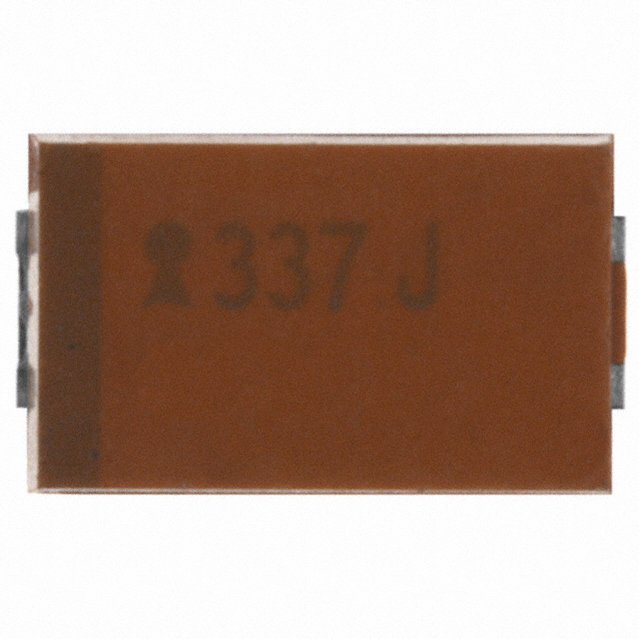

Cap Niobium 330uF 6.3V 20% 7.3 X 4.3 X 4.1mm SMD 0.08Ω 125℃ T/R
氧化铌器 2917(7343 公制)
立创商城:
330uF ±20% 6.3V
艾睿:
This lower cost and higher availability NOSE337M006R0080 niobium oxide capacitor from AVX has consistent functionality and reliability over long time periods. It can withstand a voltage of 6.3 VDC. Its leakage current is 39.6 μA. This niobium oxide capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 330uF. This product is 7.3 mm long, 4.1 mm tall and 4.3 mm deep. It has a tolerance of 20%.
安富利:
Cap Niobium 330uF 6.3V 20% 7.3 X 4.3 X 4.1mm SMD 0.08 Ohm 125°C T/R
TME:
Capacitor: niobium; 330uF; 6.3VDC; Case: E; 2917; ESR:80mΩ; OxiCap
Verical:
Cap Niobium 330uF 6.3V 20% 7.3 X 4.3 X 4.1mm SMD 0.08 Ohm 125C Automotive T/R
Newark:
# AVX NOSE337M006R0080 Niobium Oxide Capacitor, 330 µF, 6.3 V, OxiCap NOS Low ESR Series, 125 °C, 0.08 ohm
儒卓力:
**NB 330uF 6,3V 20% Case E NIOB **
Win Source:
CAP NIOB OXI 330UF 20% 6.3V 2917 / 330 µF Niobium Oxide Capacitor 6.3 V 2917 7343 Metric 80 mOhms
额定电压DC 6.30 V
工作电压 6.3 VDC
电容 330 µF
等效串联电阻ESR 80 mΩ
容差 ±20 %
纹波电流 1.573 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装 7343

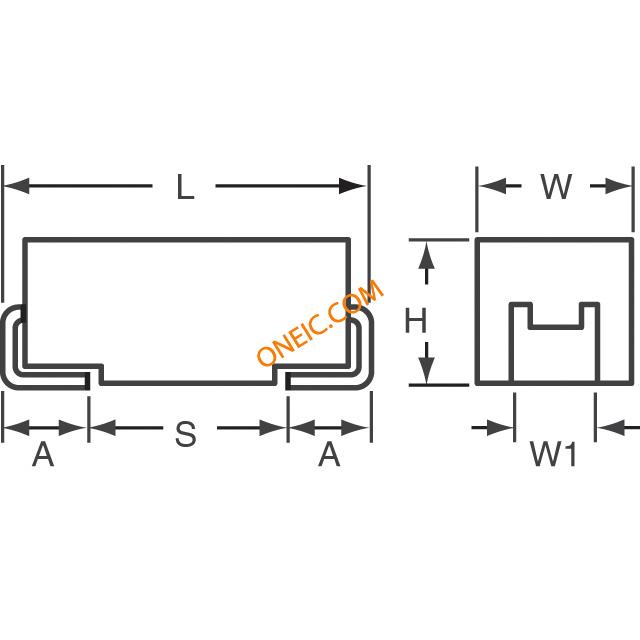

长度 7.3 mm
宽度 4.3 mm
高度 4.1 mm
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
制造应用 Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NOSE337M006R0080 AVX 艾维克斯 | 当前型号 | 当前型号 |
NOME337M006R0035 艾维克斯 | 类似代替 | NOSE337M006R0080和NOME337M006R0035的区别 |
TPSE337K6R0100 艾维克斯 | 类似代替 | NOSE337M006R0080和TPSE337K6R0100的区别 |
NOSE337M006R0100 京瓷 | 类似代替 | NOSE337M006R0080和NOSE337M006R0100的区别 |
