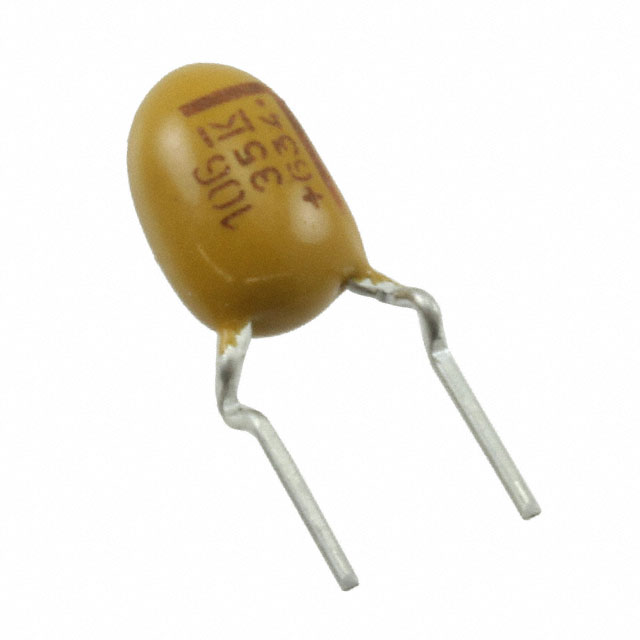

KEMET T352G106K035AT 钽电容, 10uF 10%容差 35V
A high capacitance per volume with a low footprint design is what you will get by using this tantalum solid capacitor from Kemet. It can withstand a voltage of 35 VDC. Users like its opposing crimp standoff wire form. Its leakage current is 2.8 μA. This part has a pitch of 5.08 mm. This solid capacitor has a maximum operating temperature of 125 °C. This product is 13Max mm tall with a diameter of 6.3Max mm. Its capacitance value is 10uF. It has a tolerance of 10%. The T352G106K035AT solid capacitor has a radial termination style.
额定电压DC 35.0 V
电容 10 µF
等效串联电阻ESR 2 Ω
容差 ±10 %
产品系列 T352
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 35 V
安装方式 Through Hole
引脚数 2
封装 Radial
引脚间距 5 mm
长度 13 mm
高度 13 mm
直径 Φ6.30mm
封装 Radial
引脚间距 5 mm
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
最小包装 1
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T352G106K035AT KEMET Corporation 基美 | 当前型号 | 当前型号 |
MCTAR35V106KE Multicomp | 功能相似 | T352G106K035AT和MCTAR35V106KE的区别 |
T352G106K035AS 基美 | 功能相似 | T352G106K035AT和T352G106K035AS的区别 |
