T520D157M010ATE040

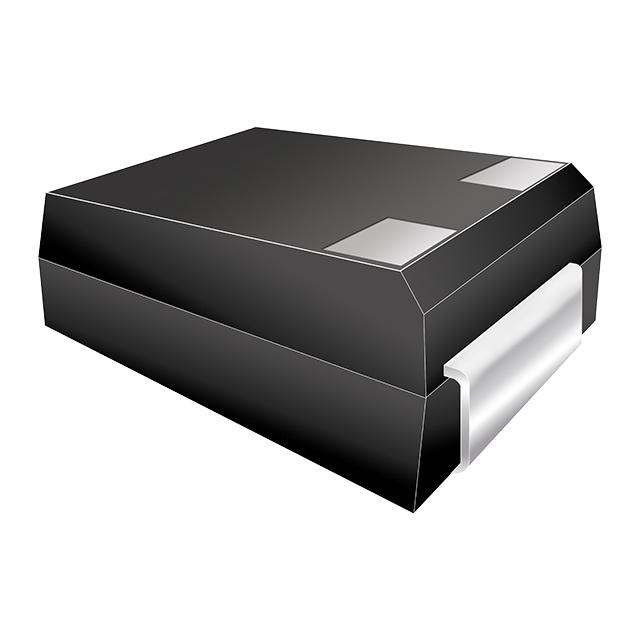

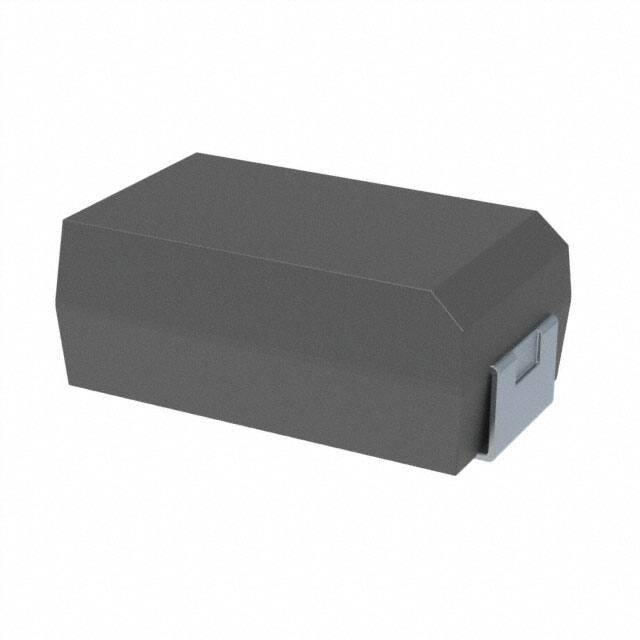

KEMET  T520D157M010ATE040.  钽电容, 150uF 10V 0.04Ω, 7343-31

钽器

得捷:
CAP TANT POLY 150UF 10V 2917

立创商城:
150uF ±20% 10V

e络盟:
钽聚合物电容器, KO-CAP®, 150 µF, 10 V, T520 系列, ± 20%, D, 0.04 ohm

艾睿:
Looking to filter out high frequencies? Implement this T520D157M010ATE040 polymer electrolyte manufactured from Kemet into your small device design. It can withstand a voltage of 10 VDC. It has 2 terminals. Its leakage current is 150 μA. Its capacitance value is 150uF. This polymer electrolyte has an operating temperature range of -55 °C to 105 °C. This product is 7.3 mm long, 2.8 mm tall and 4.3 mm deep.

安富利:
Cap Tant Solid 150uF 10V D CASE 20% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.04 Ohm 105°C T/R

Chip1Stop:
Cap Tant Solid 150uF 10V D CASE 20% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.04 Ohm 105 C T/R

TME:
Capacitor: tantalum-polymer; 150uF; 10VDC; Case: D; 2917; ESR:40mΩ

Verical:
Cap Tant Polymer 150uF 10VDC D CASE 20% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.04 Ohm 105C T/R

Newark:
# KEMET  T520D157M010ATE040  Surface Mount Tantalum Capacitor, 150 µF, 10 V, T520 Series, 2917 [7343 Metric], -55 °C
