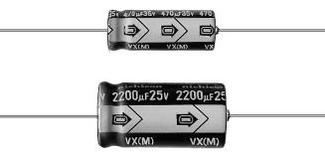

TVX1C222MCD

NICHICON  TVX1C222MCD  铝电解电容, 通用, VX系列, 2200 µF, ± 20%, 16 V, 16 mm, 轴向引线

2200µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C

得捷:
CAP ALUM 2200UF 20% 16V AXIAL

艾睿:
Using this electrolytic TVX1C222MCD aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 2200uF. The TVX1C222MCD aluminum electrolytic capacitor has an axial termination style. This product is 31.5 mm long with a diameter of 13 mm. This part has a lead diameter of 0.6 mm. Its leakage current is 4@1Min|3@2Min μA. It has a tolerance of 20%.

安富利:
Cap Aluminum 2200uF 16V 20% 13 X 31.5mm Axial 1180mA 2000 hr 85°C

富昌:
VX Series 2200 uF 16 V 85°C Ø13 x 31.5mm Axial Aluminum Electrolytic Cap

TME:
Capacitor: electrolytic; THT; 2200uF; 16VDC; Ø13x31.5mm; ±20%

Verical:
Cap Aluminum Lytic 2200uF 16V 20% 13 X 31.5mm Axial 1180mA 2000h 85C

Newark:
# NICHICON  TVX1C222MCD  Electrolytic Capacitor, General Purpose, 2200 µF, 16 V, VX Series, ± 20%, Axial Leaded, 13 mm
