UPW1A681MPD1TD

NICHICON  UPW1A681MPD1TD  铝电解电容, 680uF, 10V, 径向引线

680µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

得捷:
CAP ALUM 680UF 20% 10V RADIAL

立创商城:
680uF ±20% 10V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 680uF 10 Volts 20%

艾睿:

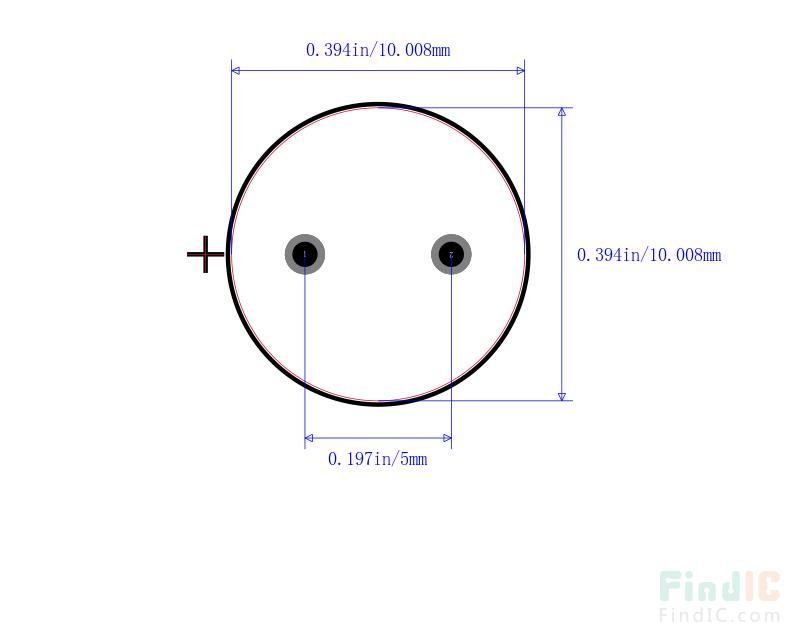

Use this relatively high equivalent series resistance electrolytic UPW1A681MPD1TD aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 680uF. The UPW1A681MPD1TD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its leakage current is 204@1Min μA. This product is 12.5 mm tall with a diameter of 10 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.

Newark:
# NICHICON  UPW1A681MPD1TD  Electrolytic Capacitor, Miniature, 680 µF, 10 V, PW Series, ± 20%, Radial Leaded, 10 mm
