1uF ±20% 50V Φ4mm 3.9mm
1µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C
得捷:
CAP ALUM 1UF 20% 50V SMD
立创商城:
1uF ±20% 50V
贸泽:
Aluminum Electrolytic Capacitors - SMD 50volts 1uF 85c 4X3.9
艾睿:

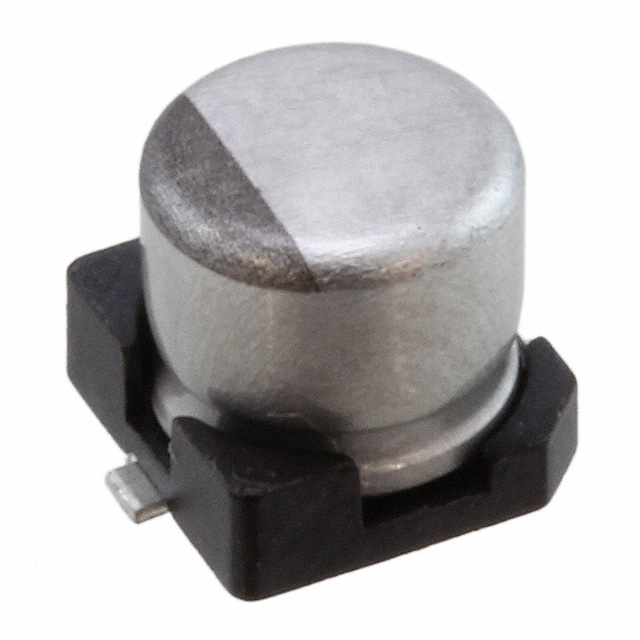

The pure aluminum anode on the electrolytic UZR1H010MCL1GB electrolytic capacitor, designed from Nichicon, is the solution to your signal filtering needs. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 1uF. This product is 3.9 mm tall with a diameter of 4 mm. Its leakage current is 3@2Min μA. It has a tolerance of 20%.
安富利:
Cap Aluminum 1uF 50V 20% 4 X 3.9mm SMD 8.4mA 1000 hr 85°C T/R
Chip1Stop:
Cap Aluminum Lytic 1uF 50V 20% 4 X 3.9mm SMD 8.4mA 1000h 85ÂÂ℃ T/R
Verical:
Cap Aluminum Lytic 1uF 50V 20% 4 X 3.9mm SMD 8.4mA 1000h 85C T/R
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UZR1H010MCL1GB Nichicon 尼吉康 | 当前型号 | 当前型号 |
UWX1H010MCL1GB 尼吉康 | 类似代替 | UZR1H010MCL1GB和UWX1H010MCL1GB的区别 |
UZS1H010MCL1GB 尼吉康 | 类似代替 | UZR1H010MCL1GB和UZS1H010MCL1GB的区别 |
UWJ1H010MCL1GB 尼吉康 | 类似代替 | UZR1H010MCL1GB和UWJ1H010MCL1GB的区别 |
