NC3MAV

NEUTRIK  NC3MAV  音频连接器, XLR, 插头, 3 触点, 电路板安装, 塑料主体, 镀金触芯, A系列

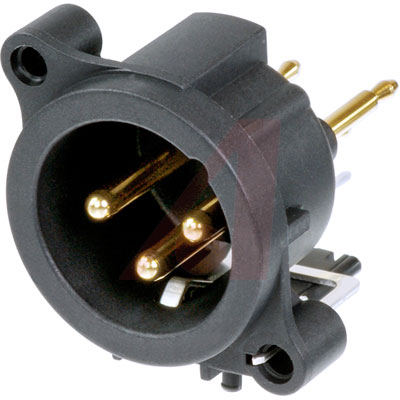

The is a 3-pole Male XLR Receptacle with latch locking device, brass contacts, grounding, separate ground contact to mating connector shell and front panel. This A series vertical PCB mount receptacle has hard gold plated contacts with polished contact areas, black plastic flange and polyamide insert.

.

Smallest XLR receptacles, highest packing density

.

Polished contact areas and hard gold plating

.

UL94V-0 Flammability rating

.

IP40 Protection rating

.

Complies with IEC 61076-2-103 standard

.

Solderability complies with IEC 68-2-20 standard

.

* >10GR Insulation resistance

.

6A Current rating per contact

.

<50V Voltage rating

.

-30 to +80°C Temperature range
