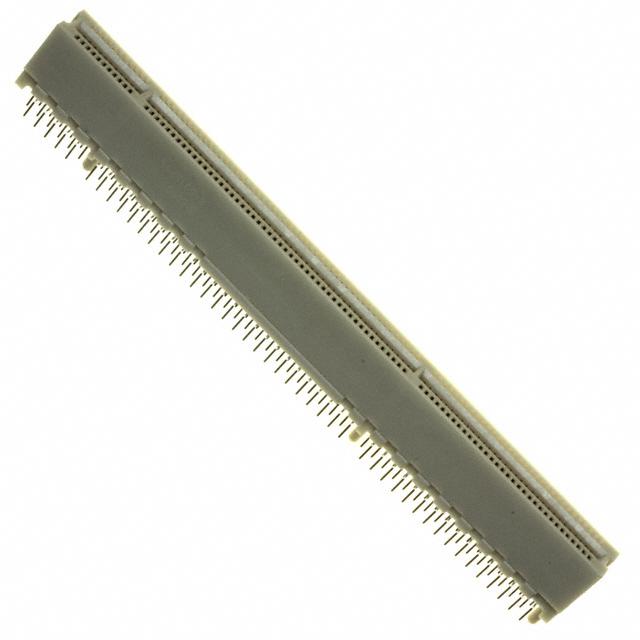

5145165-8

1.27 mm 184 位置 插座 通孔 焊接 PCI 和 PCI Express 连接器

CONNECTOR ASSEMBLY, 92 DUAL POSITION, .0

Product Highlights

Family Name = PCI

PCB Mount Angle = Vertical

92 Dual Positions

Number of Positions = 184

Housing Color = White

得捷:
CONN PCI CARDEDGE FML 184P 0.050

立创商城:
1.27mm P数:184

艾睿:
By utilizing TE Connectivity&s;s 5145165-8 smart card connector you are also significantly reducing the cost for electrical connections. This SKT connector&s;s 184 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. This is a 2-row connector. It has a maximum voltage rating of 203 VAC. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 1 A/contact. This product is 15.49 mm tall. This card edge connector has an operating temperature of -55 to 85 °C. It uses the solder termination method. 5145165-8 is housed in natural thermoplastic.

Allied Electronics:
Card Edge Connector; Phosphor Bronze; Thermoplastic; White; 92; Gold

Chip1Stop:
Conn Card Edge SKT 184 POS 1.27mm Solder ST Thru-Hole Box

Verical:
Conn Card Edge SKT 184 POS 1.27mm Solder ST Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  5145165-8  CONNECTOR ASSEMBLY, 92 DUAL POSITION, .0 New

MASTER:
CONNECTOR ASSEMBLY, 92 DUAL POSITION, .050 SERIES, STANDARD EDGE

Online Components:
CONNECTOR ASSEMBLY, 92 DUAL POSITION, .0

ICbanQ:
Cardedge & Backplane Connectors PCI 92P DUAL 3.18mm 3.3V 64 BIT

Electro Sonic:
CONNECTOR ASSEMBLY, 92 DUAL POSITION, .0
