HIN202ECB

INTERSIL  HIN202ECB  芯片, TRANSCEIVER [ROHS Substitute: 9663452]

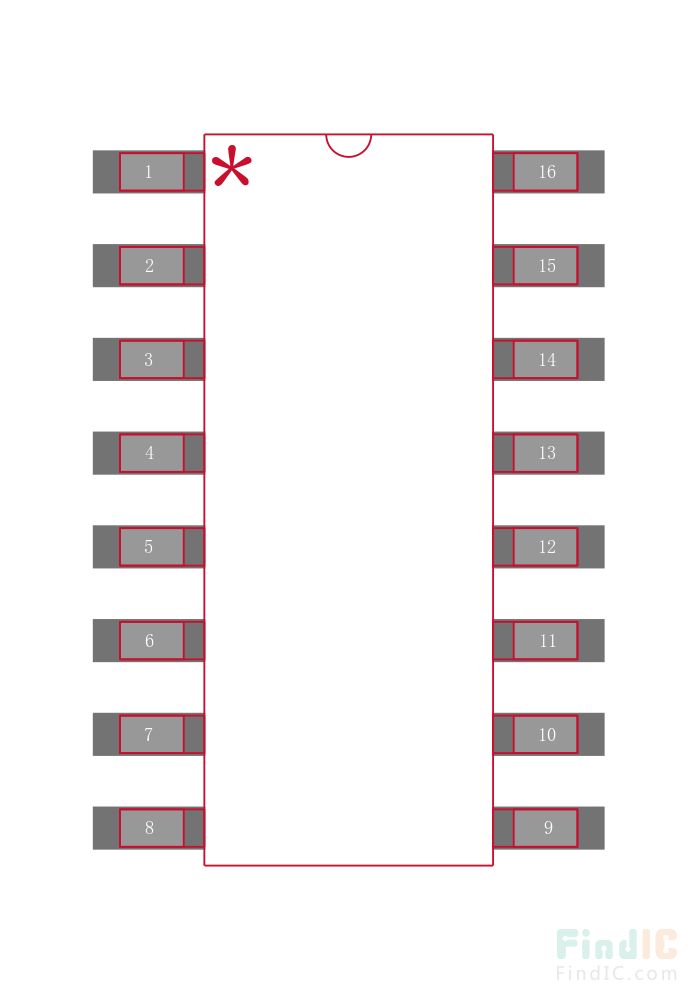

The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD Electrostatic Discharge. They require a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The family of devices offers a wide variety of high-speed RS-232 transmitter/receiver combinations to accommodate various applications see Selection Table.

Features

• Pb-Free Plus Anneal Available RoHS Compliant

• High Speed ISDN Compatible . . . . . . . . . . . . . 230kbits/s

• ESD Protection for RS-232 I/O Pins to ±15kV IEC61000

• Meets All RS-232E and V.28 Specifications

• Requires Only 0.1µF or Greater External Capacitors

• Two Receivers Active in Shutdown Mode HIN213E

• Requires Only Single +5V Power Supply

• Onboard Voltage Doubler/Inverter

• Low Power Consumption Typ . . . . . . . . . . . . . . . . . 5mA

• Low Power Shutdown Function Typ . . . . . . . . . . . . .1µA

• Three-State TTL/CMOS Receiver Outputs

• Multiple Drivers

   - ±10V Output Swing for +5V Input

   - 300Ω Power-Off Source Impedance

   - Output Current Limiting

   - TTL/CMOS Compatible

• Multiple Receivers

   - ±30V Input Voltage Range

   - 3kΩ to 7kΩ Input Impedance

   - 0.5V Hysteresis to Improve Noise Rejection

Applications

• Any System Requiring High-Speed RS-232 Communications Port

   - Computer - Portable, Mainframe, Laptop

   - Peripheral - Printers and Terminals

   - Instrumentation, UPS

   - Modems, ISDN Terminal Adaptors
