4608X-102-105LF

BOURNS  4608X-102-105LF  电阻网络, 1M

4 - 隔离器

70°C 时功率 | 0.3W（单个），1.0W（总体）

---|---

最大工作电压 | 100V 直流

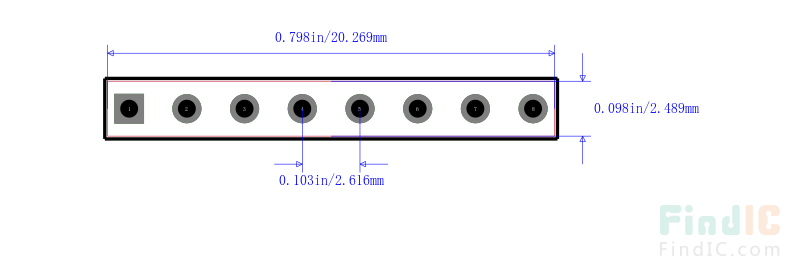

尺寸（长 x 宽 x 高） | 20.27 x 2.49 x 5.08 mm

引线间距 | 2.54mm

电阻容差 | ±2 %

温度系数 | ±100 ppm/°C

温度系数记录 | ±50 ppm/°C

工作温度 | -55°C → +125°C

欧时:
Bourns 4600X 系列 1W 1MΩ 4个电阻 排阻 4608X-102-105LF, 8端子, ±2%容差, ISOL电路标识, SIP 封装

立创商城:
1MΩ ±2%

贸泽:
Resistor Networks & Arrays 8pins 1Mohms Isolated

e络盟:
固定阵列电阻, 1 Mohm, 4608X系列, 4 元件, 隔离, SIP, 8 引脚

艾睿:
Res Thick Film NET 1M Ohm 2% 1W ±100ppm/°C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Allied Electronics:
Resistor, Ntwk, SIP, 1M Ohms, Tol 2%, Pwr Rating 1W, 100V Max, 100ppm, Isolated

Jameco:
CONFORMAL SIP,8PIN,ISOLATED, 1M,2%,LOW,BULK,HAZMAT

Chip1Stop:
Res Thick Film NET 1M Ohm 2% 1W ±100ppm/℃ ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

TME:
Resistor network: Y; 1MΩ; No.of resistors:4; THT; 0.3W; ±2%; 100V

Verical:
Res Thick Film NET 1M Ohm 2% 1W ±100ppm/C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4608X-102-105LF  Fixed Network Resistor, Isolated, 1 Mohm, 100 V, 4 Elements, Isolated, SIP, 300 mW

MASTER:
Res Thick Film NET 1M Ohm 2% 1W ±100ppm/°C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Online Components:
Res Thick Film NET 1M Ohm 2% 1W ±100ppm/°C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 1M Ohm 2% 1W ±100ppm/°C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
