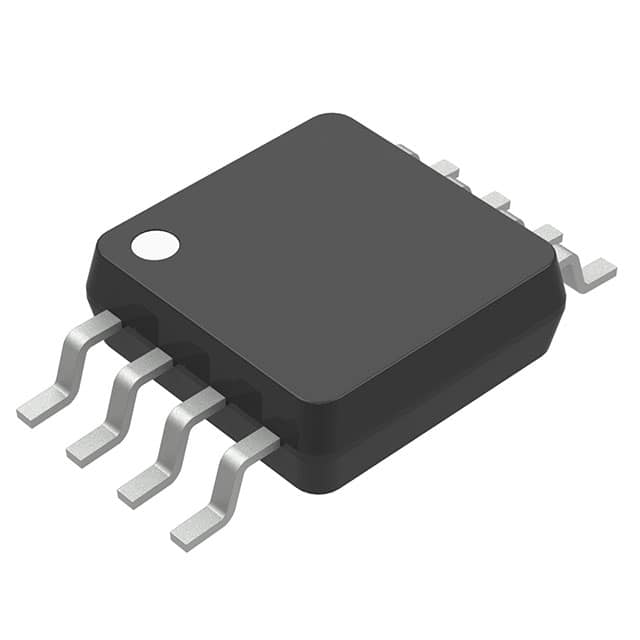

NCV20062DMR2G

运算放大器 - 运放 R2R IO DUAL AMPLIFIE

The NCS2006 series operational amplifiers provide rail−to−rail input and output operation, 3 MHz bandwidth, and are available in single, dual, and quad configurations. Rail−to−rail operation gives designers use of the entire supply voltage range while taking advantage of the 3 MHz bandwidth. The NCS2006 can operate on supply voltages from 1.8 to 5.5 V over a temperature range from −40 to 125°C. At a 1.8 V supply, this device has a slew rate of 1.2 V/s while consuming only 125 µA of quiescent current per channel. Since this is a CMOS device, high input impedance and low bias currents make it ideal for interfacing to a wide variety of signal sensors. The NCS2006 devices are available in a variety of compact packages.

Features

---

 |

.

Rail−to−Rail Input and Output

.

Wide Supply Range: 1.8 to 5.5 V

.

Wide Bandwidth: 3 MHz

.

High Slew Rate: 1.2 V/s at VS = 1.8 V

.

Low Supply Current: 125 µA per Channel at VS = 1.8 V

.

Low Input Bias Current: 1 pA Typical

.

Wide Temperature Range: −40 to 125°C

.

Available in a Variety of Packages

.

NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

.

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
