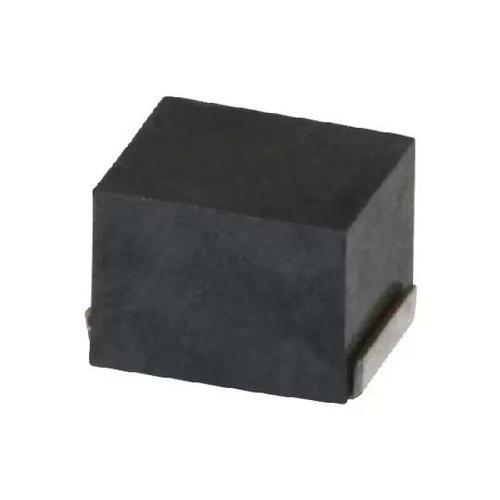

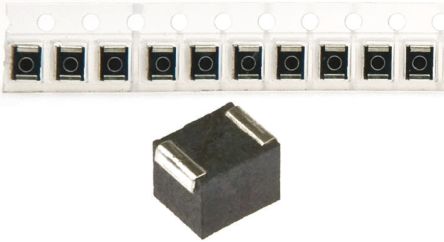

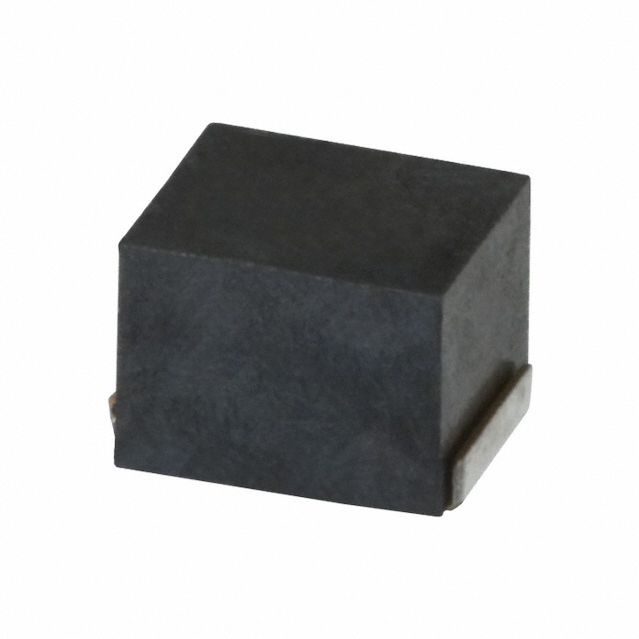

NLV32T-2R2J-PF

TDK  NLV32T-2R2J-PF  表面贴装高频电感器, NLV系列, 2.2 µH, ± 5%, 1210 [3225 公制], 75 MHz, 1 ohm

值Inductance| 2.2UH \---|--- 误差Tolerance| ±5% 额定电流Current Rating| 320mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 30 @ 7.96MHz 自振谐频率SRFFrequency - Self Resonant| 75MHz DC电阻DCRDC Resistance DCR| 1Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| NLV Series NLV32 Type FEATURES • The product has good heat durability that withstands lead-free compatible reflow soldering conditions. • Lead-free material is used for the plating on the terminal • The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series. • The product uses metal terminals, which realize excellent con-nection reliability. • Highly heat resistant thermoplastic resin is used to form the exterior package. • From 0.01µH to 100µH, all of the products in the E-12 series are J±5% tolerance products. • This product conforms to the RoHS standard. 描述与应用| NLV系列NLV32类型 特点 该产品具有良好的耐热性，可承受无铅兼容回流焊条件。 无铅材料可用于终端上的镀敷 电气特性，可靠性，形状和焊垫的形状与前NL系列是相同的。 该产品采用金属终端，实现优异的连接可靠性。 外部包装是用高耐热性的热塑性树脂。 在E-12系列所有的产品中J（±5％）公差都是从0.01μH至100μH。 本产品符合RoHS标准。
