CRCW06033K60JNEA

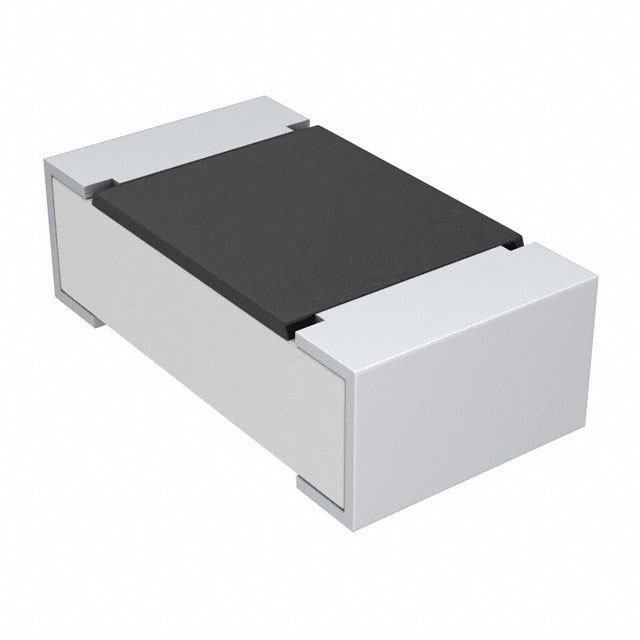

CRCW06033K60JNEA图片1
CRCW06033K60JNEA图片2
CRCW06033K60JNEA概述

0603 3.6kΩ ±5% 0.1W1/10W ±200ppm/℃

CRCW Series 0603 0.1 W 3.6 kOhm ±5 % ±200 ppm/K SMT Thick Film Chip Resistor


立创商城:
3.6kΩ ±5% 100mW


艾睿:
This is a CRCW06033K60JNEA fixed single surface-mount resistor from Vishay. This product has a resistance value of 3.6K Ohm. This dependable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±200 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 1.55 mm long, 0.45 mm tall and 0.85 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%.


CRCW06033K60JNEA中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.1 W

产品系列 Vishay_Dale

电阻 3.6 kΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

在线购买CRCW06033K60JNEA
型号: CRCW06033K60JNEA
制造商: VISHAY 威世
描述:0603 3.6kΩ ±5% 0.1W1/10W ±200ppm/℃
