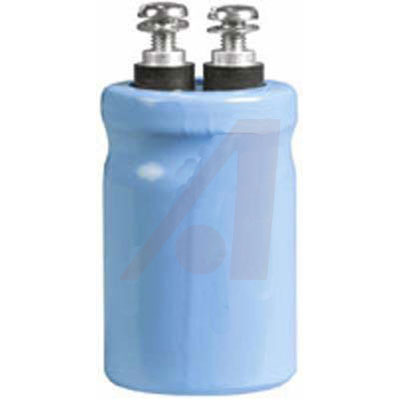

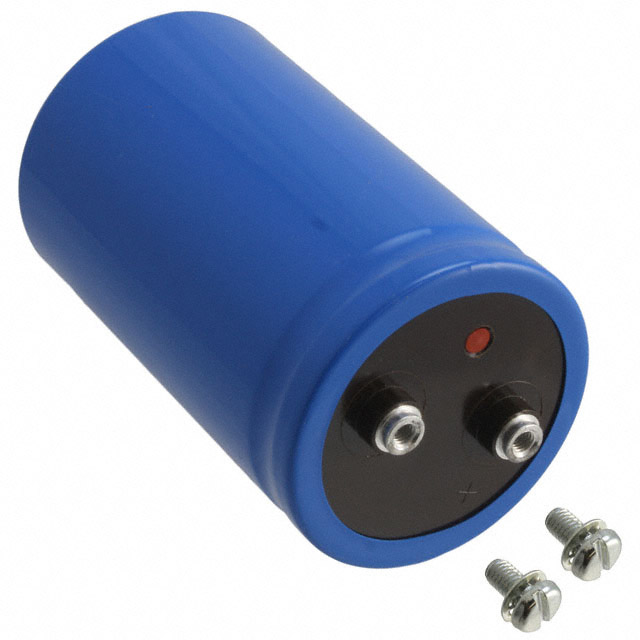

CORNELL DUBILIER CGS502T200W5C 铝电解电容, 5000uF -10%容差 200V
Type CGS screw terminal, aluminum electrolytic capacitors have a high CV rating and are suitable for use in most demanding applications requiring high current filtering or energy storage.Features:
**
* Capacitance Range: 75 to 1,500,000 μF
* Tolerance: –10% +75% Up to 150 WVDC, –10% +50%, 200-450 WVDC
* Voltage Range: 6.3 to 500 WVDC
* Operating Temperature: –40°C to +85°C
* High CV Ratings
* High Current Filtering
额定电压DC 200 V
电容 5000 µF
等效串联电阻ESR 0.036 Ω
产品系列 CGS
纹波电流 9200 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 200 V
安装方式 Screw Terminals
引脚数 2
封装 -
引脚间距 28.6 mm
长度 130 mm
高度 130 mm
直径 63.5 mm
封装 -
引脚间距 28.6 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
寿命(小时) 3000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
HTS代码 8532220085
