H857K6BYA

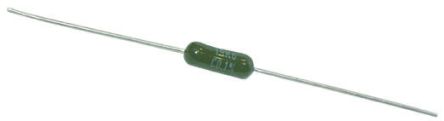

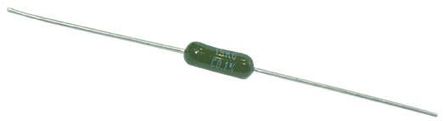

20kΩ to 1MΩAxial Leaded Precision HOLCO Series resistors have Ultra Precision – down to 0.05% High Pulse Withstand Low Reactance Low TCR- down to 5ppm/°C Long term stability Up to 1 Watt at 70°C Matched sets available to 2ppm/°C ### Metal Film,HOLCO Axial ±0.1% 0.25W70°C 时功率 | 0.25W ---|--- 电阻容差 | ±0.1% 温度系数 | ±15ppm/°C 极限元件电压 | 200V 直流或交流有效值 工作温度 | \- 55°C → +155°C 尺寸 mm --- 主体长度 | 7.2 主体直径 | 2.5 引线长度 | 30 引线直径 | 0.6

20kΩ 至 1MΩ

轴向引线式精密 HOLCO 系列器具有超高精度 - 低至 0.05%

高脉冲耐受

低电抗

低 TCR - 低至 5ppm/°C

长期稳定性

70°C 时高达 1W

匹配套件可提供 2ppm/°C

立创商城:
57.6kΩ ±0.1% 250mW

欧时:
TE Connectivity HOLCO 系列 金属膜 金属膜固定电阻器 0.25W 57.6kΩ, ±0.1%, ±15ppm/°C

e络盟:
The Holco H8 series are axial leaded precision metal film resistors that meet the requirement for economically priced components for industrial and military applications. The manufacturing facility utilises closely controlled production processes including the sputter coating of metal alloy films to ceramic substrates and laser spiralling to achieve close tolerance and high stability resistors. An epoxy coating is applied for environmental and mechanical protection.

Allied Electronics:
HOLCO Series Axial Metal Film Resistor 57.6kOhms +/-0.1% 0.25W +/-15ppm/degC

安富利:
Res Metal Film 57.6K Ohm 0.1% 1/4W ±15ppm/°C Conformal AXL Thru-Hole Bandoliered

Chip1Stop:
Res Metal Film 57.6K Ohm 0.1% 0.25W1/4W ±15ppm/ÂÂ℃ Conformal Coated AXL Bandoliered
