H8619KBYA

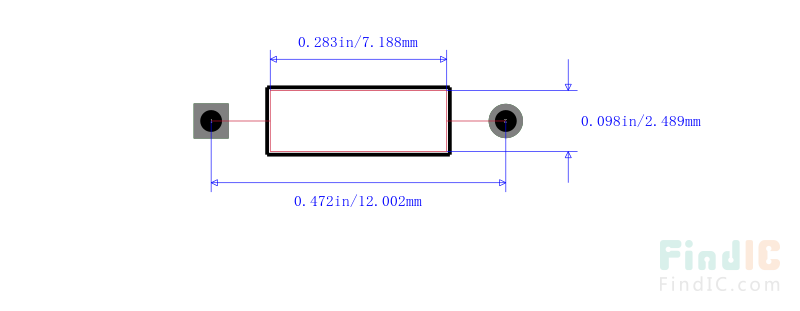

20kΩ to 1MΩAxial Leaded Precision HOLCO Series resistors have Ultra Precision – down to 0.05% High Pulse Withstand Low Reactance Low TCR- down to 5ppm/°C Long term stability Up to 1 Watt at 70°C Matched sets available to 2ppm/°C ### Metal Film,HOLCO Axial ±0.1% 0.25W70°C 时功率 | 0.25W ---|--- 电阻容差 | ±0.1% 温度系数 | ±15ppm/°C 极限元件电压 | 200V 直流或交流有效值 工作温度 | \- 55°C → +155°C 尺寸 mm --- 主体长度 | 7.2 主体直径 | 2.5 引线长度 | 30 引线直径 | 0.6

The Holco range of Precision Metal Film Resistors meets the requirement for economically priced components for industrial and military applications. The manufacturing facility utilises closely controlled production processes including the sputter coating of metal alloy films to ceramic substrates, and laser spiraling to achieve close tolerance and high stability resistors. An epoxy coating is applied for environmental and mechanical protection. Commercially the Series is available in two case sies, from 1 ohm to 4M ohms, tolerances from 0.05% to 1% and TCR"s from 5ppm/C to 100ppm/C.
