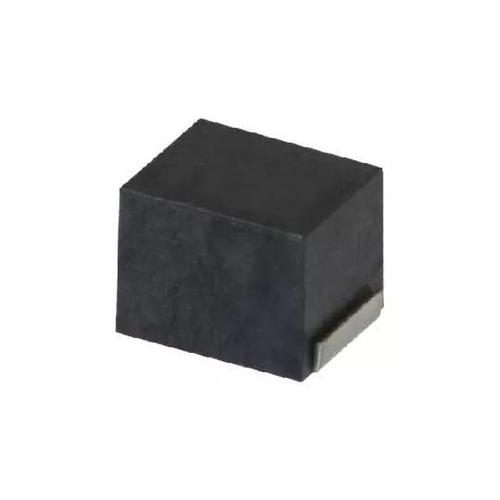

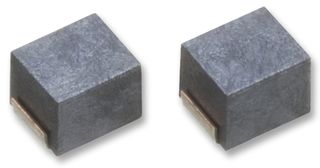

NLCV32T-220K-PF

TDK  NLCV32T-220K-PF.  电源线电感, 22uH, 300mA, 10%, 21MHZ

值Inductance| 22UH \---|--- 误差Tolerance| ±10% 额定电流Current Rating| 300mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 15 @ 2.52MHz 自振谐频率SRFFrequency - Self Resonant| 21MHz DC电阻DCRDC Resistance DCR| 0.77Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| NLCV Series NLCV32 FEATURES • This is a renewed version of NLC322522. • The product has good heat durability that withstands lead-free compatible reflow soldering conditions. • Lead-free material is used for the plating on the terminal • The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series. • The product uses metal terminals, which realize excellent connection reliability. • Highly heat resistant thermoplastic resin is used to form the exterior package. • From 1.0µH to 330µH, all of the products are available. • This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available. 描述与应用| NLCV系列NLCV32 特点 这是一个新版本NLC322522。 该产品具有良好的耐热性，可承受无铅兼容回流焊条件。 无铅材料是用于终端上的镀敷 电气特性，可靠性，形状和焊垫的形状是与前NL系列相同的。 该产品采用金属终端，实现良好的连接可靠性。 高耐热性的热塑性树脂。 从1.0μH到330μH。 本产品符合RoHS指令。
