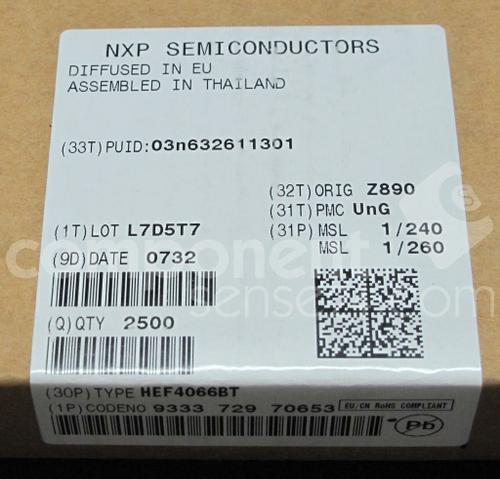

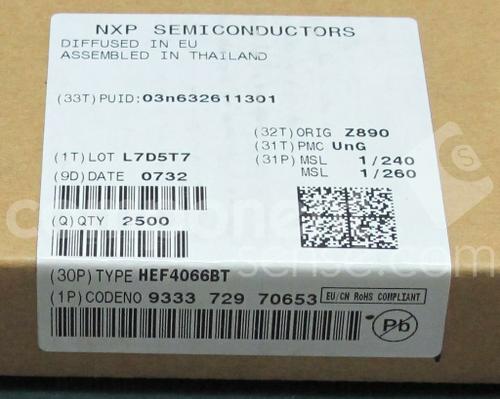

NXP HEF4066BT 模拟开关, SPST, 4 放大器, 350 ohm, 4.5V 至 15.5V, SOIC, 14 引脚
The is a quad single-pole single-throw Analogue Switch. Each switch has two input/output terminals nY and nZ and an active high enable input nE. When nE is low, the analogue switch is turned off. The HEF4066B is pin compatible with the HEF4016B but exhibits a much lower on resistance. In addition the on resistance is relatively constant over the full input signal range.
电源电压DC 15.0 V
电路数 4
通道数 4
针脚数 14
耗散功率 100 mW
逻辑门个数 4
工作温度Max 70 ℃
工作温度Min -40 ℃
3dB带宽 90 MHz
电源电压 4.5V ~ 15.5V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
封装 SOIC-14
产品生命周期 Unknown
包装方式 Each
制造应用 Signal Processing, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
HEF4066BT NXP 恩智浦 | 当前型号 | 当前型号 |
HEF4066BT,653 恩智浦 | 类似代替 | HEF4066BT和HEF4066BT,653的区别 |
CD4066BE 德州仪器 | 功能相似 | HEF4066BT和CD4066BE的区别 |
CD4066BM96 德州仪器 | 功能相似 | HEF4066BT和CD4066BM96的区别 |
