EVM3RSX50B52

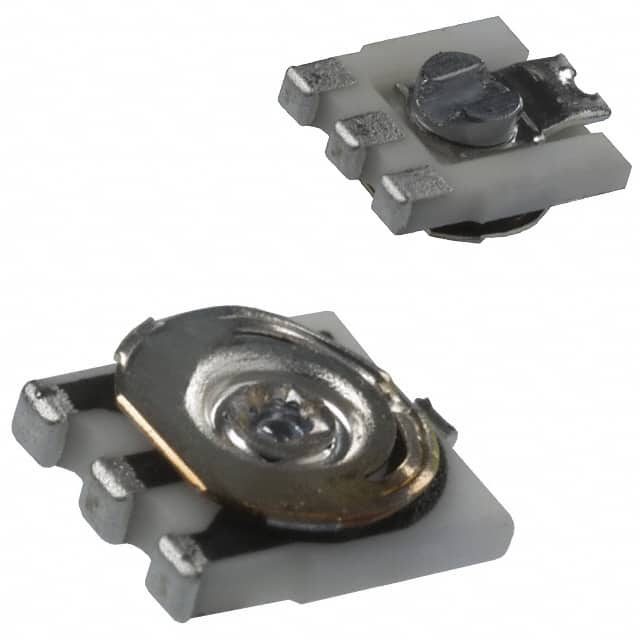

3毫米方形贴片微调电位器 EVM3RSX50B52 500Ω/Ohm 3X3-500R marking/标记52

值Resistance | 500Ω/Ohm \---|--- 额定功率Power | 0.15W 容差Tolerance | ±25% 温度系数Temperature Coefficient | ±250 ppm/°C 圈数Number of Turns | 单圈 Single 调节类型Adjustment Type | 背面调节 Back Side Adjustment 端子类型Termination Style | J引线 J Lead Description & Applications | ●"3 mm Square SMT Trimmer Potentiometers Cermet, Open Frame Type" ● Both sides adjust type evm3s ● Back sides adjust type and low-profile 0.9mm1.0mm max EVM3R ● Automatic adjustment type EVM3E ● high reliability realized by cermet element 描述与应用 | ●"3毫米方形贴片微调电位器 （陶瓷，开架式）" ●双方调整型（evm3s） ●背面调整类型和低调0.9毫米的（1.0mm最大）EVM3R品 ●自动调整型（EVM3E） ●高可靠性的金属陶瓷元件实现
