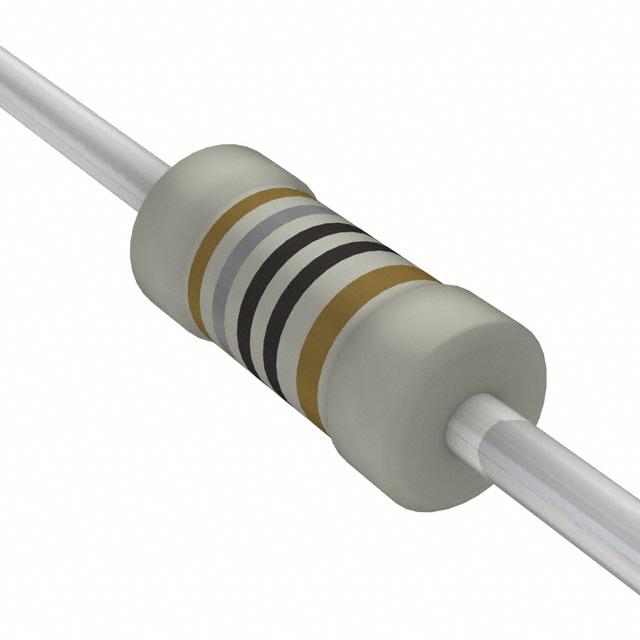

NFR2500001000JR500

Res Metal Film 100Ω 5% 0.33W1/3W

A homogenous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper are welded to the end-caps. The resistors are coated with a grey, flame retardant lacquer which provides electrical, mechanical, and climatic protection. The encapsulation is resistant to all cleaning solvents in accordance with “MIL-STD-202E, method 215”, and “IEC 60068-2-45”.

**Features:**

* Overload Protection Without Risk of Fire

* Wide Range of Overload Currents Refer Fusing Characteristics Graphs

* Lead Pb-Free Solder Contacts

* Pure Tin Plating Provides Compatibility with Lead Pb-Free and Lead Containing Soldering Processes

* Compatible with “Restriction of the Use of Hazardous Substances" RoHS Directive 2002/95/EC Issue 2004

**Applications:**

* Audio

* Video
