NFM21PC474R1C3D

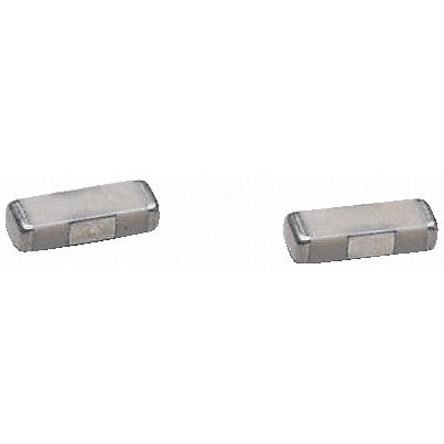

MURATA  NFM21PC474R1C3D  抑制滤波器, 0805, 0.47uF, 16VDC

电容值Capacitance| 0.47μF \---|--- 电压Voltage| 16V 电流Current| 2A DC电阻DCRDC Resistance DCR| 30mΩ Description & Applications| On-Board Type DC EMI Suppression Filters EMIFIL Chip EMIFIL for Large Current NFM18P/21P/3DP/41P SeriesNFM21P Series NFM21P is a 3-terminal structure component. This product can be applied to large current DC power lines. NFM21P is suitable for noise suppression of DC power lines where relatively operates large current. Features 1. The rated current of 4A is suitable for IC"s individual power lines. 2. Small dimension enables higher density packaging. NFM21P is much smaller size 2.0x1.25x0.85mm. 3. Murata"s original internal electrode structure design realizes excellent EMI suppression effects from low frequency to high frequency. 描述与应用| 板型（DC）EMI静噪滤波器（EMIFIL） 大电流NFM18P/21P/3DP/41P SeriesNFM21P系列片状EMIFIL NFM21P是3端子结构组件。本产品可应用于大电流直流电源线。 NFM21P适用于相对经营大电流的直流电源线的噪声抑制。 特点 1。额定电流为4A，适用于IC单独的电源线​​。 2。小尺寸实现高密度封装。 NFM21P是更小的尺寸（2.0x1.25x0.85mm）。 3。制作所的原内部电极结构设计实现了卓越的EMI抑制效果，从低频到高频。
