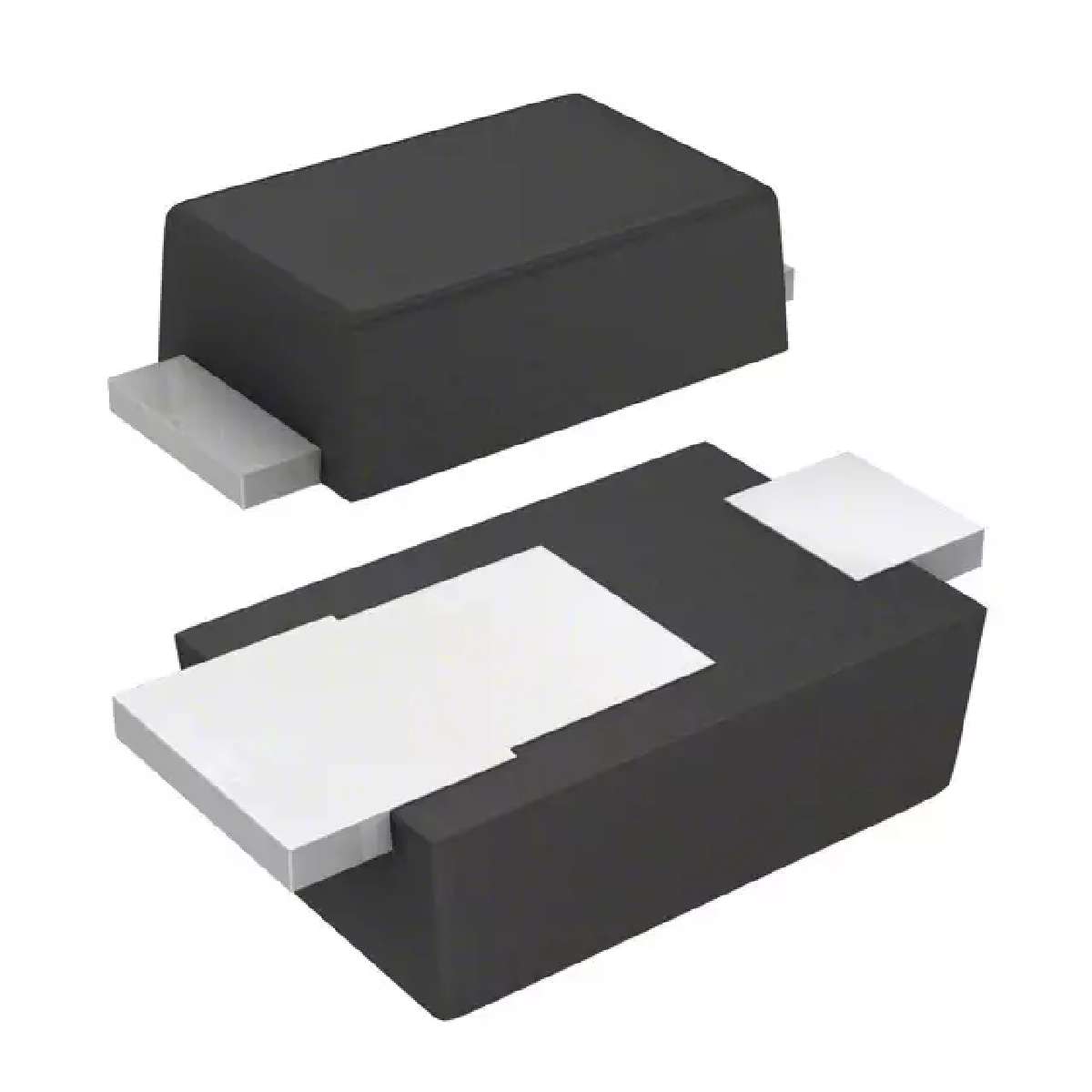

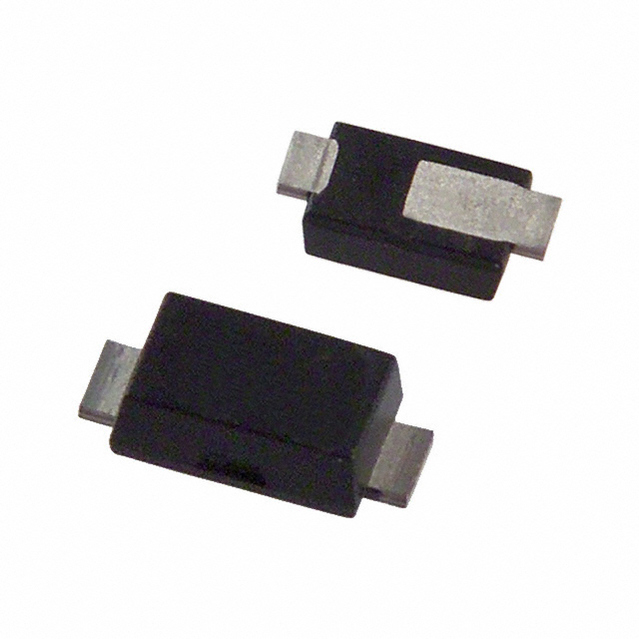

DFLS240L-7 编带
肖特基 2A 表面贴装型 PowerDI™ 123
得捷:
DIODE SCHOTTKY 40V 2A PWRDI123
立创商城:
40V 2A 500mV@2A
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode DFLS240L-7 rectifier from Diodes Zetex. Its maximum power dissipation is 556 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 2 A.
Allied Electronics:
Diode Schottky 2A 40V PowerDI 123
安富利:
Diode Schottky 40V 2A 2-Pin PowerDI 123 T/R
Chip1Stop:
Diode Schottky 40V 2A Automotive 2-Pin PowerDI 123 T/R
Verical:
Diode Schottky 40V 2A Automotive 2-Pin PowerDI 123 T/R
Newark:
# DIODES INC. DFLS240L-7 Schottky Rectifier, Powerdi®, 40 V, 2 A, Single, SMD, 2 Pins, 500 mV
儒卓力:
**SCHOTTKY-DIODE 40V 2A POWDI123 **
Win Source:
DIODE SCHOTTKY 40V 2A POWERDI123
额定电压DC 40.0 V
额定电流 2.00 A
电容 55.0 pF
输出电流 ≤2.00 A
针脚数 2
正向电压 500mV @2A
极性 Standard
耗散功率 1.67 W
热阻 5℃/W RθJL
正向电流 2 A
最大正向浪涌电流(Ifsm) 50 A
正向电压Max 500 mV
正向电流Max 2000 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温Max 125 ℃
耗散功率Max 1670 mW
安装方式 Surface Mount
引脚数 2
封装 POWERDI-123
长度 2.8 mm
宽度 1.78 mm
高度 0.98 mm
封装 POWERDI-123
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DFLS240L-7 Diodes 美台 | 当前型号 | 当前型号 |
DFLS140-7 美台 | 类似代替 | DFLS240L-7和DFLS140-7的区别 |
DFLS240-7 美台 | 类似代替 | DFLS240L-7和DFLS240-7的区别 |
DFLS230LH-7 美台 | 类似代替 | DFLS240L-7和DFLS230LH-7的区别 |
