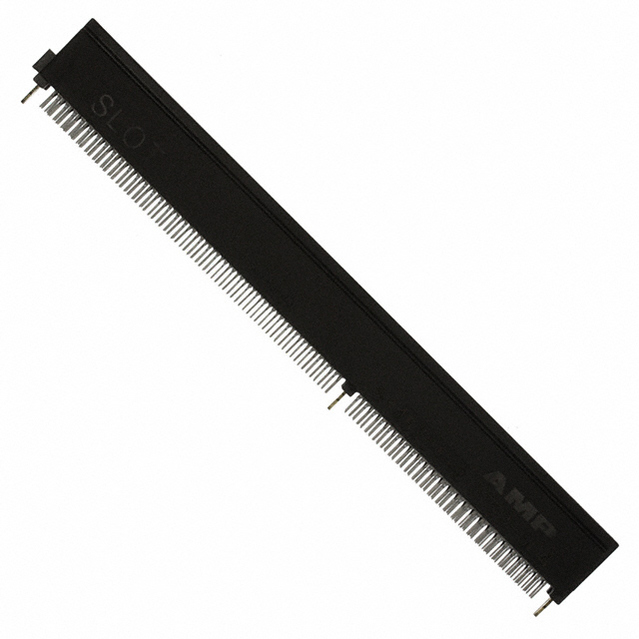

5145251-2图片1
5145251-2图片2
5145251-2图片3
5145251-2图片4
5145251-2图片5
5145251-2图片6
5145251-2图片7
5145251-2图片8
5145251-2图片9
5145251-2图片10
5145251-2图片11
5145251-2图片12
5145251-2图片13
5145251-2概述

2.54mm P数:242

242 位置 母头 CPU - 插槽 1 镀金 0.100"(2.54mm) 棕色


得捷:
CONN CPU SLOT 1 FEMALE 242POS


立创商城:
2.54mm P数:242


艾睿:
Save space for your project by implementing this 5145251-2 smart card connector from TE Connectivity onto your printed circuit boards. This SKT connector&s;s 242 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 2 mm. It has a socket type gender. This is a 2-row connector. It has a straight body orientation. This product is 15.57 mm tall. This component will be shipped in tray format. 5145251-2 is housed in brown thermoplastic. This card edge connector has an operating temperature of 0 to 85 °C. It uses the solder termination method.


Chip1Stop:
Conn Card Edge SKT 242 POS 2mm Solder ST Thru-Hole


Verical:
Conn Card Edge SKT 242 POS 2mm Solder ST Thru-Hole Tray


Newark:
# TE CONNECTIVITY  5145251-2  Connector, Card Edge, 242 Contacts, Receptacle, 1 mm, Crimp


MASTER:
AMP, 1mm CENTERLINE STANDARD EDGE ASSEMBLY 242 POSITION


Powell:
AGP, NLX, Slot 1 Connectors Standard Edge 1mm


ICbanQ:
CONN 242 POS SLOT 1 PENTIUM .100


Electro Sonic:
AMP 1MM STD EDGE 242 POS


5145251-2中文资料参数规格
技术参数

触点数 242

极性 Female

触点电镀 Tin, Tin over Nickel, Gold

排数 2

方向 Vertical

针脚数 242

工作温度Max 85 ℃

工作温度Min 0 ℃

额定电压Max 250 VAC

接触电阻Max 20 mΩ

封装参数

安装方式 Through Hole

封装 100

引脚间距 991 µm

外形尺寸

长度 133 mm

宽度 9.40 mm

高度 15.57 mm

封装 100

引脚间距 991 µm

物理参数

外壳颜色 Brown

颜色 Brown

触点材质 Phosphor Bronze

工作温度 0℃ ~ 85℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Tray

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买5145251-2
型号: 5145251-2
制造商: TE Connectivity 泰科
描述:2.54mm P数:242
替代型号5145251-2
型号/品牌 代替类型 替代型号对比

5145251-2

TE Connectivity 泰科

当前型号

当前型号

145251-2

泰科

功能相似

5145251-2和145251-2的区别
