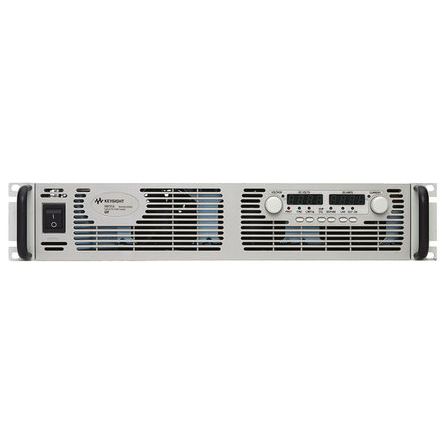

Keysight N8700 系列小型高密度 2 U 封装 内置电压和电流测量 过电压和过电流完全保护 支持易于使用的 SCPI（用于可编程仪器的标准命令） Sorensen DLM 和 Xantrex XFR 直流电源命令兼容性 LAN、USB 和 GPIB 接口标准 完全符合 LXI C 类规格 **制造商部件号** | **电源** | **输出额定值** | **库存号** ---|---|---|--- N8731A | 3.3 kW | 0 → 8 V, 0 → 400 A | 671-8785 N8732A | 3.3 kW | 0 → 10V, 0 → 330 A | 671-8788 N8733A | 3.3 kW | 0 → 15 V, 0 → 220 A | 671-8782 N8734A | 3.3 kW | 0 → 20 V, 0 → 165 A | 671-8791 N8735A | 3.3 kW | 0 → 30 V, 0 → 110 A | 671-8794 N8736A | 3.3 kW | 0 → 40 V, 0 → 85 A | 671-8798 N8737A | 3.3 kW | 0 → 60 V, 0 → 55 A | 671-8808 N8738A | 3.3 kW | 0 → 80 V, 0 → 42 A | 671-8801 N8739A | 3.3 kW | 0 → 100 V, 0 → 33 A | 671-8805 N8740A | 3.3 kW | 0 → 150 V, 0 → 22 A | 671-8814 N8741A | 3.3 kW | 0 → 300 V, 0 → 11 A | 671-8817 N8742A | 3.3 kW | 0 → 600 V, 0 → 5.5 A | 671-8811 N8756A | 5 kW | 0 → 40 V, 0 → 125 A | 671-8827 N8759A | 5 kW | 0 → 100 V, 0 → 50 A | 671-8833 N8760A | 5 kW | 0 → 150 V, 0 → 34 A | 671-8842 N8761A | 5 kW | 0 → 300 V, 0 → 17 A | 671-8845 N8762A | 5 kW | 0 → 600 V, 0 → 8.5 A | 671-8849 | **3.3 kW** | **5 kW** ---|---|--- **模拟编程范围** （电压和电流） | 0-5V / 0-10V 0-5kΩ / 0-10kΩ | 0-5V / 0-10V 0-5kΩ / 0-10kΩ **工作温度** | 0°C → 40°C @ 100% 负载 | 0°C → 40°C @ 100% 负载 **额定输入** | 170 - 260 V 交流 50 / 60 Hz 单相电源 | 342 - 460 V 交流 50 / 60 Hz 三相电源 **输入电流** | 6.8 A - 7.2 A @ 100% 负载 | 10.5 A - 12 A @ 100% 负载 **功率因数** | 0.99 | 0.94 **效率** | 82% – 88% | 83% – 88% **尺寸** | 423mm W x 88mm H x 442.5mm D | 423mm W x 88mm H x 442.5mm D **重量** | 13 Kg | 16 Kg ### 注3.3kW 电源具有选件 832，5kW 型号具有选件 862### 机架安装直流电源
The N8700 series DC Power Supply consists of 21 models for simple DC power applications. It provides stable output power, built-in voltage and current measurement and output voltage and current from 8 to 600V and 5.5 to 400A. These economical supplies offer many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development for R&D, design validation and manufacturing engineers. It comes with GPIB, Ethernet/LAN and USB 2.0 interfaces giving the flexibility to use I/O interface of choice today and safeguard test setup for the future. The N8700 series is fully compliant with the LXI Class C specification. The built-in web server provides remote access and control of the instrument via a standard browser such as Microsoft® internet explorer or Mozilla Firefox®. This control goes above and beyond the LXI specification, giving user"s the ability to monitor and control the instrument from anywhere.
