1503 09

LUMBERG  1503 09  手机音频连接器, 插座, 3.5 mm, 3 触点, 电路板安装, 塑料主体, 镀银触芯

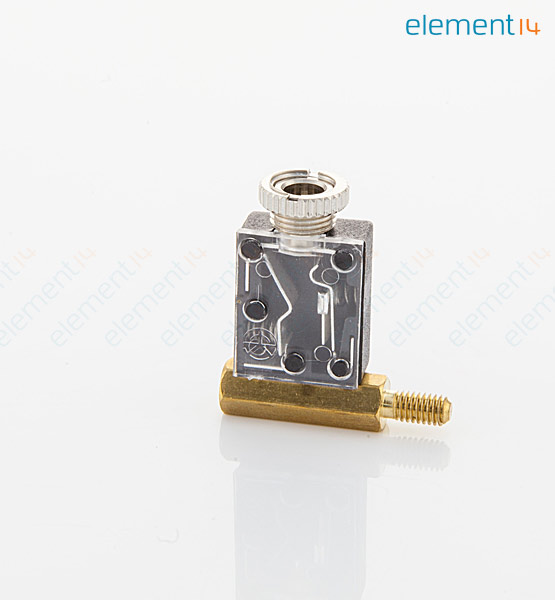

The from is a 3.5mm, 3pole stereo jack socket connector. The angular version jack chassis socket are according to JIS C 6560 JC35J3B standard with 2 break contact, solder terminals for printed circuit boards and back side mounting.

.

Rated current of 1A

.

Rated voltage of 34VAC/VDC

.

Insulating body material is polyphenylene oxide,UL94-V0 rated

.

CuZn, silver plated contact

.

Mating with KLS 40, KLS 44, WKLS 40 jack plugs

.

Temperature range from -20°C to 70°C
