RK73H1HTTC1153F

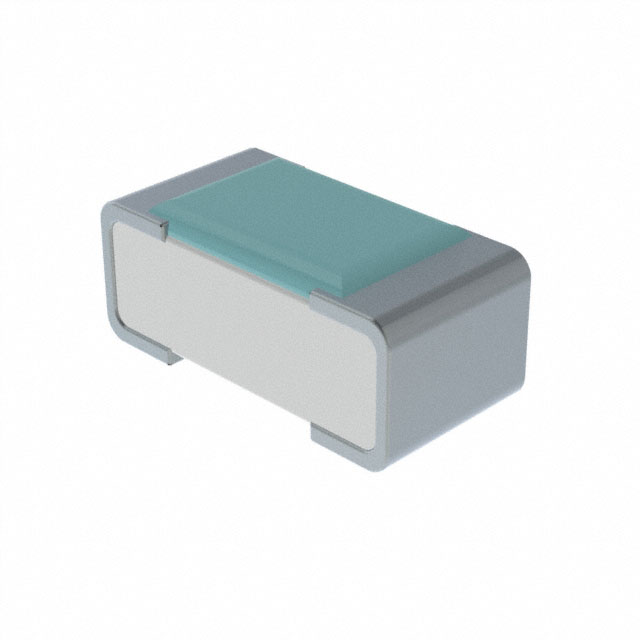

RK73H1HTTC1153F图片1
RK73H1HTTC1153F图片2
RK73H1HTTC1153F概述

Thick Film Resistors - SMD 115KΩ 1%

115 ±1% 0.05W,1/20W 芯片 0201(0603 公制) 汽车级 AEC-Q200,防潮 厚膜


得捷:
RES 115K OHM 1% 1/20W 0201


贸泽:
Thick Film Resistors - SMD 115K OHM 1%


艾睿:
Use this RK73H1HTTC1153F fixed single surface-mount resistor from KOA Speer Electronics to obtain a visually clean layout. This part has a power rating of 0.05 1/20 W. This product has a resistance value of 115K Ohm. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes thick film technology. This product is 0.6 mm long, 0.23 mm tall and 0.3 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C.


RK73H1HTTC1153F中文资料参数规格
技术参数

额定电压DC 25.0 V

额定功率 50 mW

电阻 115 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 25 V

封装参数

安装方式 Surface Mount

封装 0201

外形尺寸

长度 0.6 mm

宽度 0.3 mm

高度 0.23 mm

封装 0201

物理参数

工作温度 55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买RK73H1HTTC1153F
型号: RK73H1HTTC1153F
制造商: KOA Speer
描述:Thick Film Resistors - SMD 115KΩ 1%
