RK73H1JTTD54R9F

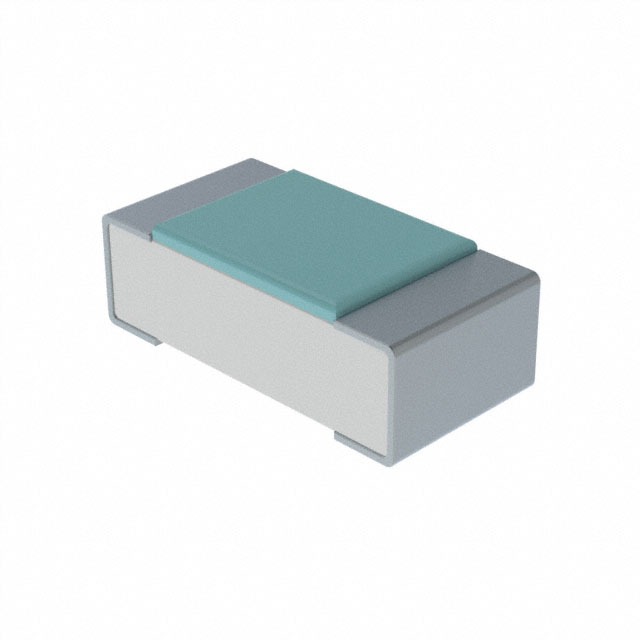

RK73H1JTTD54R9F图片1
RK73H1JTTD54R9F图片2
RK73H1JTTD54R9F图片3
RK73H1JTTD54R9F图片4
RK73H1JTTD54R9F概述

Res Thick Film 0603 54.9Ω 1% 0.125W1/8W ±100ppm/℃ SMD Automotive T/R

54.9 Ohms ±1% 0.125W,1/8W 芯片 0603(1608 公制) 汽车级 AEC-Q200,防潮 厚膜


得捷:
RES 54.9 OHM 1% 1/8W 0603


贸泽:
Thick Film Resistors - SMD 1/10watt 54.9ohms 1%


艾睿:
This is a RK73H1JTTD54R9F fixed single surface-mount resistor from KOA Speer Electronics. This part has a power rating of 0.125 1/8 W. This product has a resistance value of 54.9 Ohm. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 1%. This device utilizes thick film technology. This part has an operating temperature of -55 to 155 °C. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep.


Verical:
Res Thick Film 0603 54.9 Ohm 1% 0.125W1/8W ±100ppm/C Pad SMD Automotive T/R


RK73H1JTTD54R9F中文资料参数规格
技术参数

额定电压DC 50.0 V

额定功率 0.125 W

电阻 54.9 Ω

工作温度Max 155 ℃

工作温度Min 55 ℃

额定电压 75 V

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead free

数据手册

在线购买RK73H1JTTD54R9F
型号: RK73H1JTTD54R9F
制造商: KOA Speer
描述:Res Thick Film 0603 54.9Ω 1% 0.125W1/8W ±100ppm/℃ SMD Automotive T/R
