RK73H2BTTD1244F

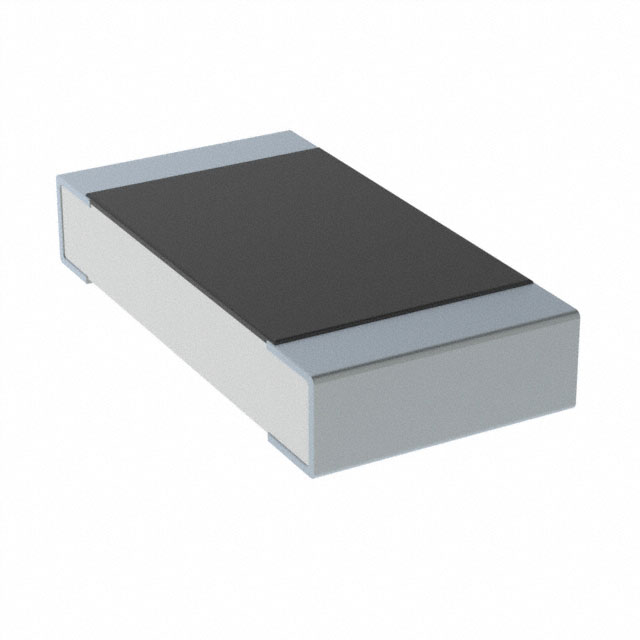

RK73H2BTTD1244F图片1
RK73H2BTTD1244F图片2
RK73H2BTTD1244F概述

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1240000ohm, 200V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP

1.24 MOhms ±1% 0.25W, 1/4W Chip Resistor 1206 3216 Metric Automotive AEC-Q200, Moisture Resistant Thick Film


得捷:
RES 1.24M OHM 1% 1/4W 1206


艾睿:
This is a RK73H2BTTD1244F fixed single surface-mount resistor from KOA Speer Electronics. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 1.24M Ohm. Its temperature coefficient is ±200 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This device is made with thick film technology.


RK73H2BTTD1244F中文资料参数规格
技术参数

额定电压DC 200 V

额定功率 0.25 W

电阻 1.24 MΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.20 mm

宽度 1.60 mm

高度 0.6 mm

封装公制 3216

封装 1206

物理参数

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

在线购买RK73H2BTTD1244F
型号: RK73H2BTTD1244F
制造商: KOA Speer
描述:Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1240000ohm, 200V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP
