RK73H2BTTD1180F

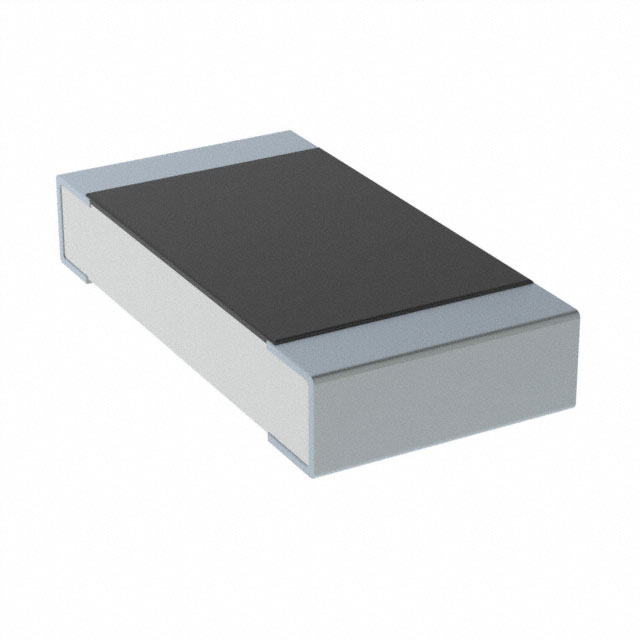

RK73H2BTTD1180F图片1
RK73H2BTTD1180F图片2
RK73H2BTTD1180F图片3
RK73H2BTTD1180F图片4
RK73H2BTTD1180F概述

Res Thick Film 1206 118Ω 1% 0.25W1/4W ±100ppm/℃ SMD Automotive T/R

118 Ohms ±1% 0.25W,1/4W 芯片 1206(3216 公制) 汽车级 AEC-Q200,防潮 厚膜


得捷:
RES 118 OHM 1% 1/4W 1206


艾睿:
Use this RK73H2BTTD1180F fixed single surface-mount resistor from KOA Speer Electronics to obtain a visually clean layout. This dependable part has a power rating of 0.25 1/4 W. This product has a resistance value of 118 Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%.


Verical:
Res Thick Film 1206 118 Ohm 1% 0.25W1/4W ±100ppm/C Pad SMD Automotive T/R


RK73H2BTTD1180F中文资料参数规格
技术参数

额定电压DC 200 V

额定功率 0.25 W

电阻 118 Ω

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.20 mm

宽度 1.60 mm

高度 0.6 mm

封装公制 3216

封装 1206

物理参数

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

在线购买RK73H2BTTD1180F
型号: RK73H2BTTD1180F
制造商: KOA Speer
描述:Res Thick Film 1206 118Ω 1% 0.25W1/4W ±100ppm/℃ SMD Automotive T/R
替代型号RK73H2BTTD1180F
型号/品牌 代替类型 替代型号对比

RK73H2BTTD1180F

KOA Speer

当前型号

当前型号

ERJ-8ENF1180V

松下

类似代替

RK73H2BTTD1180F和ERJ-8ENF1180V的区别
