RL07S432GB14

RL07S432GB14概述

金属膜电阻 4.3kΩ ±2% 250mW

RES 4.3K OHM 1/4W 2% AXIAL


立创商城:
金属膜电阻 4.3kΩ ±2% 250mW


艾睿:
The RL07S432GB14 fixed single through-hole resistor, developed by Vishay, can offer you a more traditional mounting method for resistors in your circuit. This dependable part has a power rating of 0.25 1/4 W. This product has a resistance value of 4.3K Ohm. Its temperature coefficient is ±200 ppm/°C. This product comes packaged in bulk, so the parts will be stored loosely. It has a tolerance of 2%. This product is 6.1 mm long. The RL07S432GB14 part has an axial termination style. This part has an operating temperature of -65 to 175 °C. This device is made with metal film technology.


RL07S432GB14中文资料参数规格
技术参数

额定功率 0.25 W

电阻 4.3 KΩ

工作温度Max 175 ℃

工作温度Min -65 ℃

封装参数

封装 轴向引线

外形尺寸

脚长度 38.1 mm

封装 轴向引线

其他

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

数据手册

RL07S432GB14引脚图与封装图

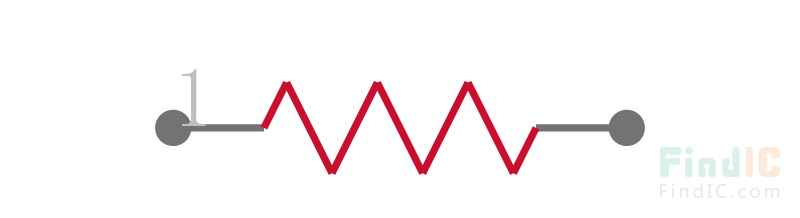

RL07S432GB14引脚图

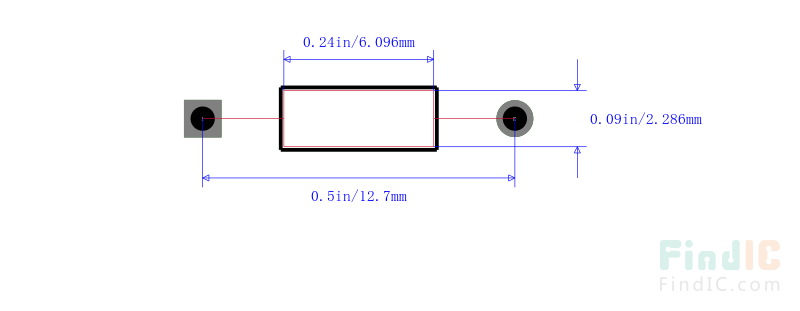

RL07S432GB14封装图

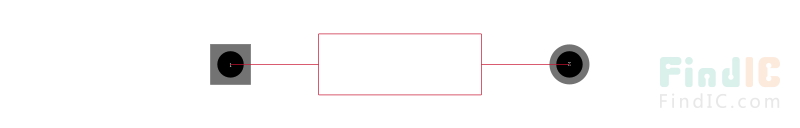

RL07S432GB14封装焊盘图
在线购买RL07S432GB14
型号: RL07S432GB14
制造商: VISHAY 威世
描述:金属膜电阻 4.3kΩ ±2% 250mW
