RLR07C3012FSRE6

RLR07C3012FSRE6图片1
RLR07C3012FSRE6图片2
RLR07C3012FSRE6概述

Res Metal Film 30.1KΩ 1% 0.25W1/4W ±100ppm/℃ 0.001% Epoxy AXL T/R

Look no further than Vishay"s fixed single through-hole resistor, a cost-effective component that can be easily soldered to any printed circuit board. This product has a resistance value of 30.1K Ohm. This durable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -65 to 150 °C. It is reliable with a failure rate grade of S. It has a tolerance of 1%. This device utilizes metal film technology. The RLR07C3012FSRE6 part has an axial termination style. This product is 6.35 mm long.

RLR07C3012FSRE6中文资料参数规格
技术参数

触点数 4

额定功率 0.25 W

电阻 30100 Ω

工作温度Max 150 ℃

工作温度Min -65 ℃

封装参数

封装 Axial

外形尺寸

脚长度 38.1 mm

封装 Axial

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准 Non-Compliant

数据手册

RLR07C3012FSRE6引脚图与封装图

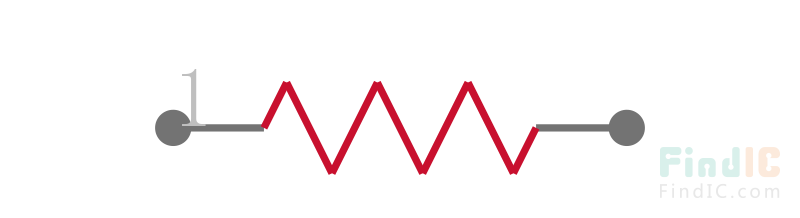

RLR07C3012FSRE6引脚图

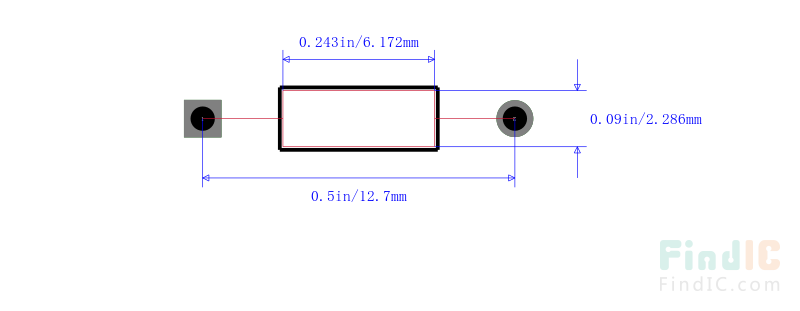

RLR07C3012FSRE6封装图

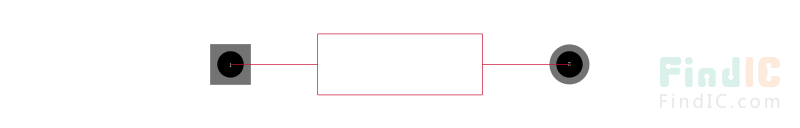

RLR07C3012FSRE6封装焊盘图
在线购买RLR07C3012FSRE6
型号: RLR07C3012FSRE6
制造商: VISHAY 威世
描述:Res Metal Film 30.1KΩ 1% 0.25W1/4W ±100ppm/℃ 0.001% Epoxy AXL T/R
