TNPW060337K4BEEN

TNPW060337K4BEEN图片1
TNPW060337K4BEEN图片2
TNPW060337K4BEEN概述

0603 37.4kΩ ±0.1% 0.1W1/10W ±25ppm/℃

RES 37.4K OHM 0.1% 1/8W 0603


立创商城:
37.4kΩ ±0.1% 125mW


贸泽:
Thin Film Resistors - SMD 37.4Kohms .1% 25ppm


艾睿:
Use this TNPW060337K4BEEN fixed single surface-mount resistor from Vishay to obtain a visually clean layout. This durable part has a power rating of 0.1 1/10 W. This product has a resistance value of 37.4K Ohm. Its temperature coefficient is ±25 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This part has an operating temperature of -55 to 125 °C. This device is made with thin film technology. This product is 1.6 mm long, 0.45 mm tall and 0.85 mm deep.


TNPW060337K4BEEN中文资料参数规格
技术参数

额定功率 100 mW

产品系列 Vishay_Dale

电阻 37.4 KΩ

阻值偏差 ±0.1 %

工作温度Max 155 ℃

工作温度Min 55 ℃

额定电压 75 V

封装参数

封装公制 1608

封装 0603

外形尺寸

长度 1.55 mm

宽度 0.85 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 55℃ ~ 125℃

温度系数 ±25 ppm/℃

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

数据手册

TNPW060337K4BEEN引脚图与封装图

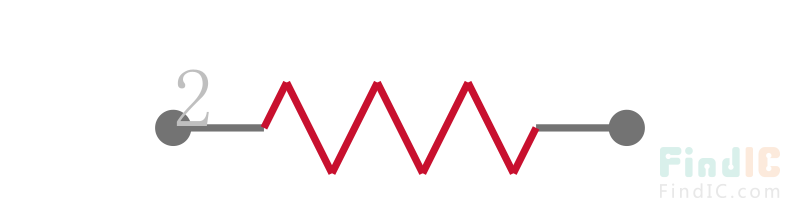

TNPW060337K4BEEN引脚图

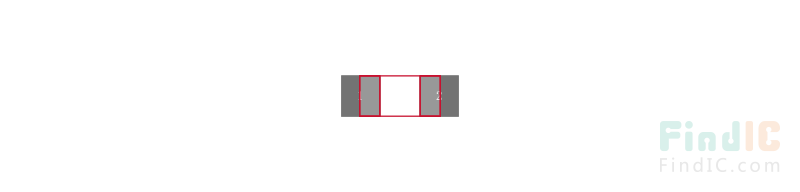

TNPW060337K4BEEN封装图

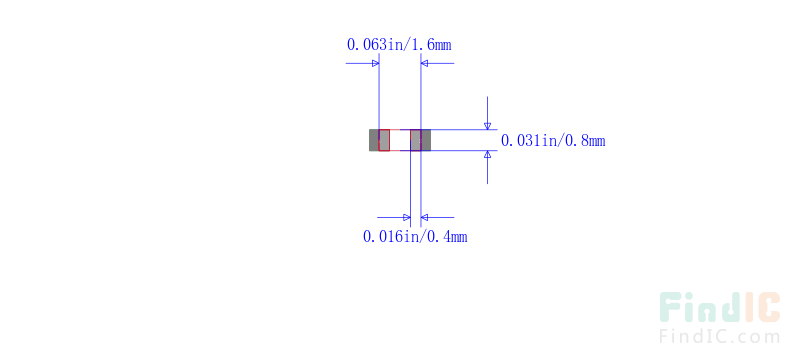

TNPW060337K4BEEN封装焊盘图
在线购买TNPW060337K4BEEN
型号: TNPW060337K4BEEN
制造商: VISHAY 威世
描述:0603 37.4kΩ ±0.1% 0.1W1/10W ±25ppm/℃
