TWM7J2K0E

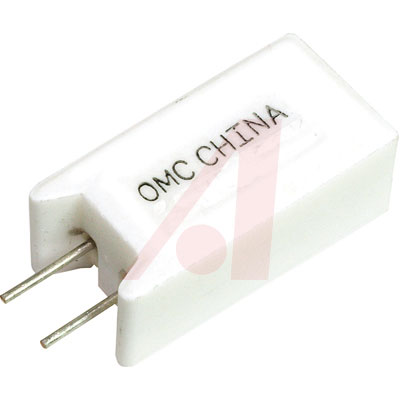

TWM7J2K0E图片1
TWM7J2K0E图片2
TWM7J2K0E概述

金属氧化物电阻器 2K ohm 7W 5% Metal Oxide Radial

Ceramic housing for fiberglass or metal oxide core with cement based filling. Short time overload is wirewound 10× rated wattage for 5 sec.; metal oxide 5× rated wattage for 5 sec. results in ±2%. Derate from 100% at 70°C to 0% at 275°C. Incombustibility at 16× rated wattage for 5 min. is not flamed. Moisture proof load life at 40°C 95% RH on-off cycle 1000 hours yields ±5%. Additional values available.

* Economical Commercial Grade for General Purpose Use

* Wirewound and Metal Oxide Construction

* Flameproof

* Tolerance: 5%

TWM7J2K0E中文资料参数规格
技术参数

容差 5 %

额定功率 7 W

产品系列 TWM

电阻 2 kΩ

阻值偏差 ±5 %

工作温度Max 275 ℃

工作温度Min -55 ℃

封装参数

封装 径向引线

外形尺寸

宽度 12.5 mm

高度 12.5 mm

封装 径向引线

物理参数

温度系数 ±350 ppm/℃

其他

包装方式 Bulk

最小包装 200

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买TWM7J2K0E
型号: TWM7J2K0E
制造商: Ohmite
描述:金属氧化物电阻器 2K ohm 7W 5% Metal Oxide Radial
