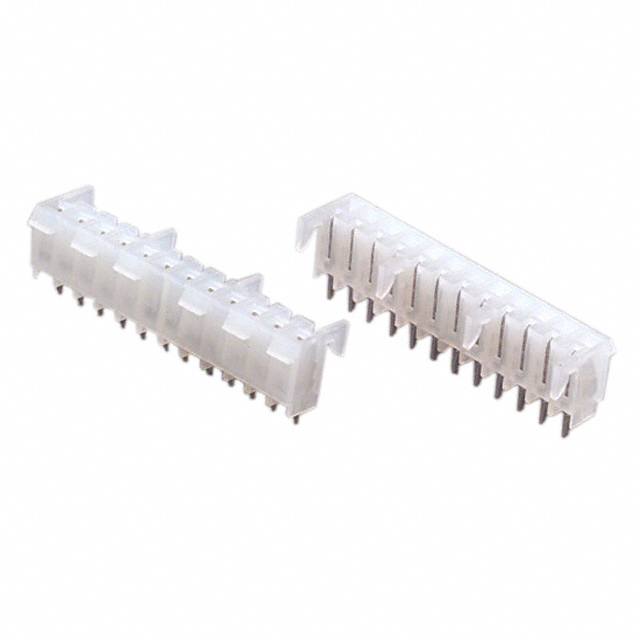

Conn Socket Strip RCP 12POS 3.96mm Solder ST Thru-Hole KK® Tray
12 Position Receptacle Connector Through Hole
得捷:
CONN RCPT 12POS 0.156 TIN PCB
艾睿:
Support physical configuration options for jumper posts by mounting this socket strip 0009523123 header connector from Molex. This RCP connector&s;s 12 contacts that are made out of phosphor bronze and plated with tin. It has a straight body orientation. Its pitch is 3.96 mm. This is a 1-row connector. It has a receptacle type gender. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 5 A/contact. This component will be shipped in tray format. It uses the solder termination method. This product is 47.45 mm long, 11.4 mm tall and 10.35 mm deep. 0009523123 is housed in white nylon. This connector has an operating temperature of 0 to 75 °C.
Verical:
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole KK® Tray
