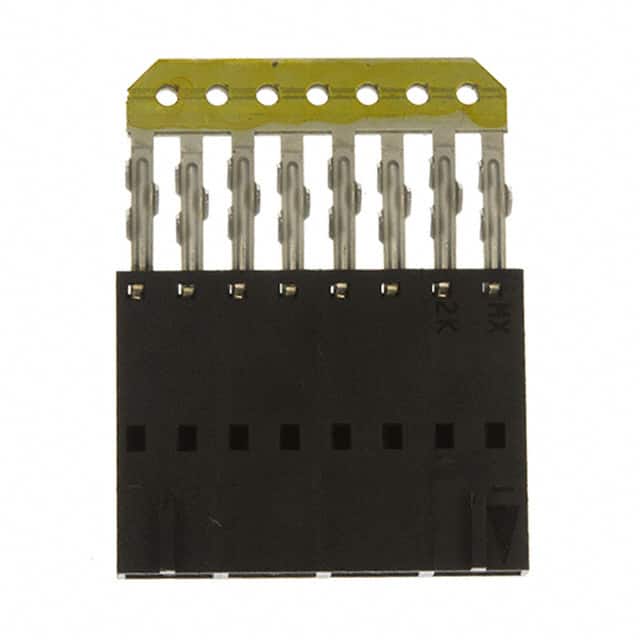

2.54毫米（ .100 ） C- SL网格™单列，女，版本G插座， 8电路 2.54mm .100 C-Grid SL™ Single Row, Female, Version G Receptacle, 8 Circuits
8 Position FFC, CIC Connector Receptacle 0.100" 2.54mm Free Hanging In-Line
得捷:
CONN FFC CIC RCPT 8POS 2.54MM
艾睿:
Use this idc connector 0015474083 connector from Molex when board-to-board interconnects is required. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 250 V. Its pitch is 2.54 mm. It has a female type gender. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0015474083 is housed in black polyester. It uses the idt termination method. This product is 20.29 mm long, 6.6 mm tall and 15.24 mm deep. This connector has an operating temperature of -40 to 105 °C.
Verical:
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount SL™ Tube
