NLV25T-1R0J-PF

TDK  NLV25T-1R0J-PF  信号线电感, 1uH, 1005

固定器

得捷:
FIXED IND 1UH 245MA 1.1 OHM SMD

立创商城:
1uH ±5% 1.1Ω

艾睿:

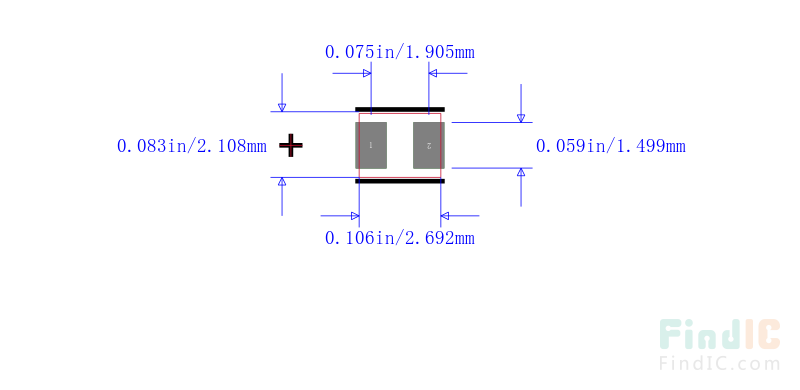

This rf chip NLV25T-1R0J-PF surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 245M Hz. This SMD inductor has a maximum DC current of 245m A with a maximum resistance of 1.1 Ohm. It has a tolerance of 5%. It has an inductance of 1u H. This device is made with wirewound technology. This product is 2.7 mm long, 1.9 mm tall and 2.1 mm deep.

安富利:
Ind RF Chip Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor 245mA 1008 T/R

富昌:
NLV 系列 1008 1 uH ±5 % 1.1 Ohm 245 mA 表面贴装 模压 线绕电感

Chip1Stop:
Ind RF Chip Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 245mA 1008 T/R

TME:
Inductor: ferrite; SMD; 1008; 1uH; 245mA; 1.1Ω; ±5%; ftest:7.96MHz

Verical:
Inductor General Purpose Chip Molded/Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 0.245A 1.1Ohm DCR 1008 T/R

Newark:
# TDK  NLV25T-1R0J-PF  Surface Mount High Frequency Inductor, NLV Series, 1 µH, 245 mA, SMD, Wirewound, 1.1 ohm

儒卓力:
**NLV25T 1,0uH 245mA 5% WWT **

MASTER:
Inductor RF Chip Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 245mA 1.1Ohm DCR 1008 T/R

Electro Sonic:
Inductor RF Chip Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 245mA 1.1Ohm DCR 1008 T/R

Win Source:
1μH Unshielded Wirewound Inductor 245mA 1.1 Ohm Max 1008 2520 Metric
