0395021008

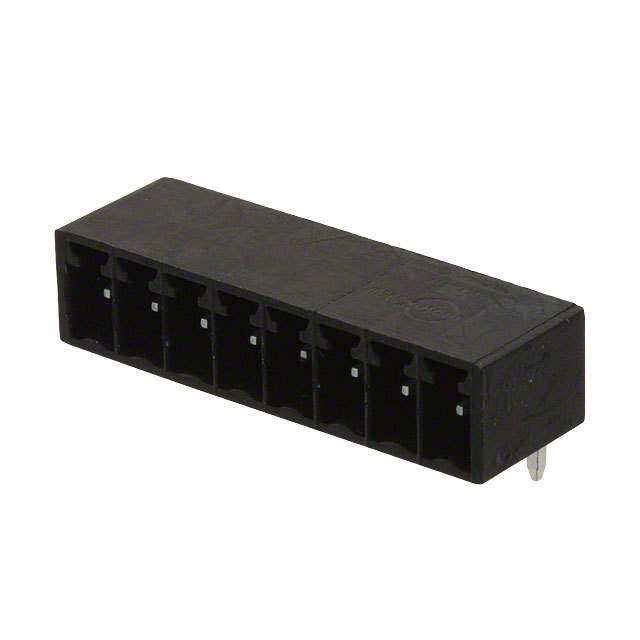

0395021008图片1
0395021008图片2
0395021008概述

3.50毫米( 0.138 “ )间距欧瑞士达™水平PCB插头, 8电路 3.50mm .138" Pitch Eurostyle™ Horizontal PCB Header, 8 Circuits

8 Position Terminal Block Header, Male Pins, Shrouded 4 Side 0.138" 3.50mm 90°, Right Angle Through Hole


得捷:
TERM BLOCK HDR 8POS 90DEG 3.5MM


立创商城:
3.5mm 排数:1 每排P数:8


艾睿:
Easily mount this wire to board 0395021008 header connector from Molex onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 8 contacts that are made out of brass and plated with tin. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 300 V. Its pitch is 3.5 mm. This is a 1-row connector. This device has a maximum current rating of 8 A/contact. This product is 29.39 mm long, 6.9 mm tall and 9.2 mm deep. 0395021008 is housed in black polyamide 6/6. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method.


安富利:
Conn Wire to Board HDR 8 POS 3.5mm Solder RA Thru-Hole


0395021008中文资料参数规格
技术参数

触点数 8

极性 Male

绝缘电阻 500 MΩ

排数 1

针脚数 8

额定电流Max 8A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 300 V

接触电阻Max 8 mΩ

封装参数

安装方式 Through Hole

封装 -

外形尺寸

高度 6.9 mm

封装 -

物理参数

外壳颜色 Black

颜色 Black

触点材质 Brass

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0395021008
型号: 0395021008
制造商: Molex 莫仕
描述:3.50毫米( 0.138 “ )间距欧瑞士达™水平PCB插头, 8电路 3.50mm .138" Pitch Eurostyle™ Horizontal PCB Header, 8 Circuits
替代型号0395021008
型号/品牌 代替类型 替代型号对比

0395021008

Molex 莫仕

当前型号

当前型号

39355-0008

莫仕

完全替代

0395021008和39355-0008的区别
