0395332010

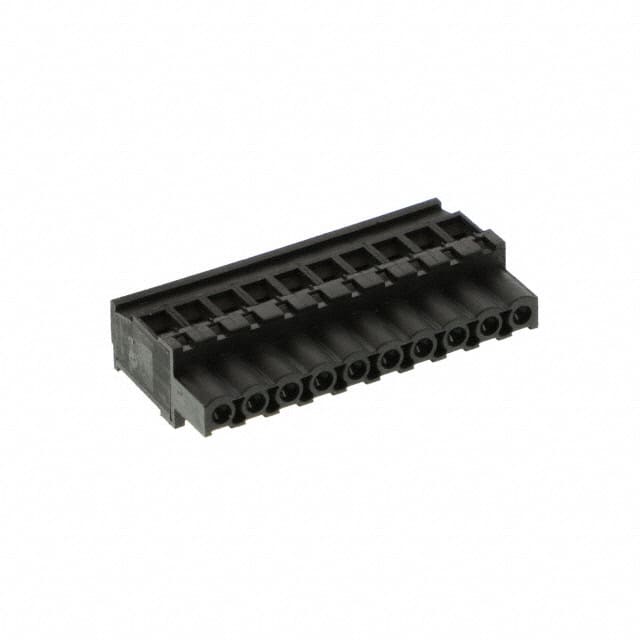

5.08毫米（ 0.200 “ ）间距欧瑞士达™垂直式插头，后导线入口，10个电路 5.08mm .200" Pitch Eurostyle™ Vertical Plug, Rear Wire Entry, 10 Circuits

10 Position Terminal Block Plug, Female Sockets 0.200" 5.08mm 270° Free Hanging In-Line

得捷:
TERM BLOCK PLUG 10POS 5.08MM

贸泽:
Pluggable Terminal Blocks 5.08MM EURO PLUG VERT RWE BLK 10CKT

艾睿:
Know that you will have strong connections between circuits when you use Molex&s;s eurostyle block 0395332010 PCB terminal block. This F connector&s;s 10 contacts that are made out of steel and plated with tin. It has a female type gender. Its pitch is 5.08 mm. This is a 1-row connector. It has a maximum voltage rating of 300 V. It has a straight body orientation. 0395332010 is housed in polyamide 6/6. This device has a maximum current rating of 15 A/contact. Its wire is 12-26 AWG. This product is 25.9 mm tall. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C.

安富利:
Conn Eurostyle Block F 10 POS 5.08mm Screw ST Cable Mount 15A/Contact
