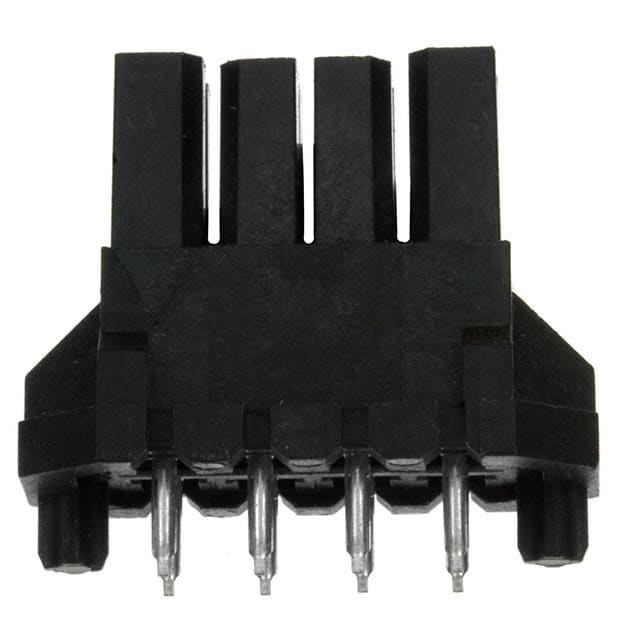

3.00毫米（ 0.118 “ ）间距微飞度3.0 ， BMI插座头，双排，垂直，用压装的塑料钉， 0.38um 3.00mm .118" Pitch Micro-Fit 3.0, BMI Receptacle Header, Dual Row, Vertical, with Press-fit Plastic Pegs, 0.38um
8 位置 插座 0.118"（3.00mm） 通孔 镀金
得捷:
CONN RCPT 8POS 0.118 GOLD PCB
艾睿:

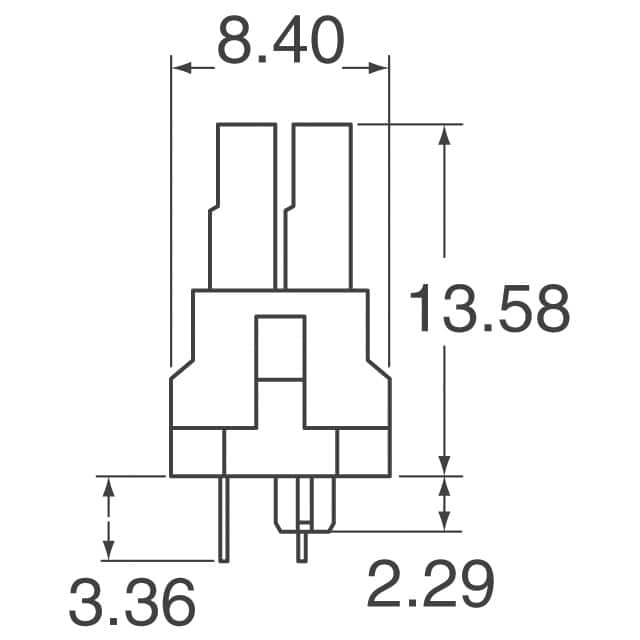

This wire to board 0447690802 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This RCP connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 3 mm. It has a receptacle type gender. It has a maximum voltage rating of 250 V. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 18 mm long, 13.6 mm tall and 8.4 mm deep. 0447690802 is housed in black nylon 6/6.
Verical:
Conn Power RCP 8 POS 3mm Press Fit ST Thru-Hole 8 Terminal 1 Port Micro-Fit 3.0™ Tray
