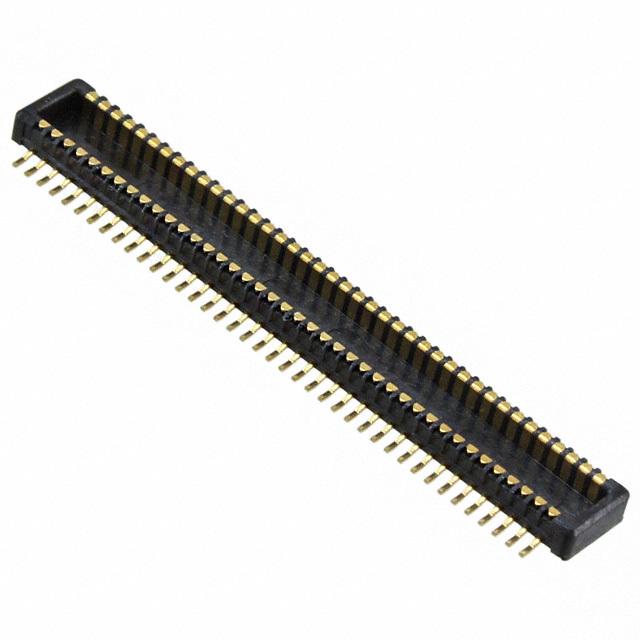

0.50毫米（ 0.020 “ ）间距SlimStack ™插件，表面贴装，双排，垂直， 1.50毫米（ .059 ” ）堆叠高度， 80电路 0.50mm .020" Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical, 1.50mm.059" Stack Height, 80 Circuits
80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 80POS SMD GOLD
立创商城:
0555600807
艾睿:
Mounting this board to board 0555600807 header connector from Molex to your printed circuit board can help you support multiple physical configuration options. This PL connector&s;s 80 contacts that are made out of brass and plated with gold over nickel. It has a plug type gender. It has a maximum voltage rating of 50 V. It has a straight body orientation. Its pitch is 0.5 mm. This is a 2-row connector. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This connector has an operating temperature of -25 to 85 °C. This product is 21.45 mm long, 1.15 mm tall and 2.83 mm deep. 0555600807 is housed in black liquid crystal polymer. It uses the solder termination method.
