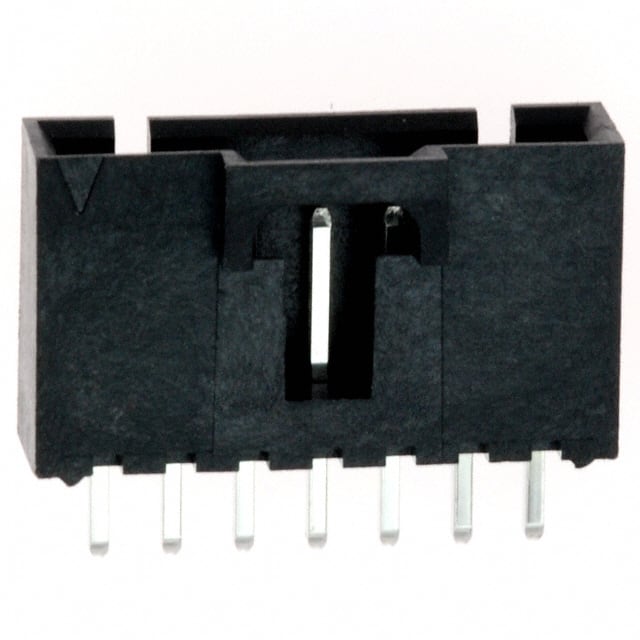

2.54毫米（ .100“ ）间距SL头，单列，立式， 0.120 ”口袋，带罩，电路7 ，锡（Sn ）镀层 2.54mm .100" Pitch SL Header, Single Row, Vertical, .120" Pocket, Shrouded, 7 Circuits, Tin Sn Plating
Connector Header Through Hole 7 position 0.100" 2.54mm
得捷:
CONN HEADER VERT 7POS 2.54MM
艾睿:
Think of Molex&s;s shrouded 0705430041 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 7 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. It has a straight body orientation. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0705430041 is housed in black polyester. It uses the solder termination method. This product is 20.33 mm long, 11.81 mm tall and 6.6 mm deep. This connector has an operating temperature of -40 to 105 °C.
Verical:
Conn Shrouded Header 4 Sides HDR 7 POS 2.54mm Solder ST Thru-Hole SL™ Tube
