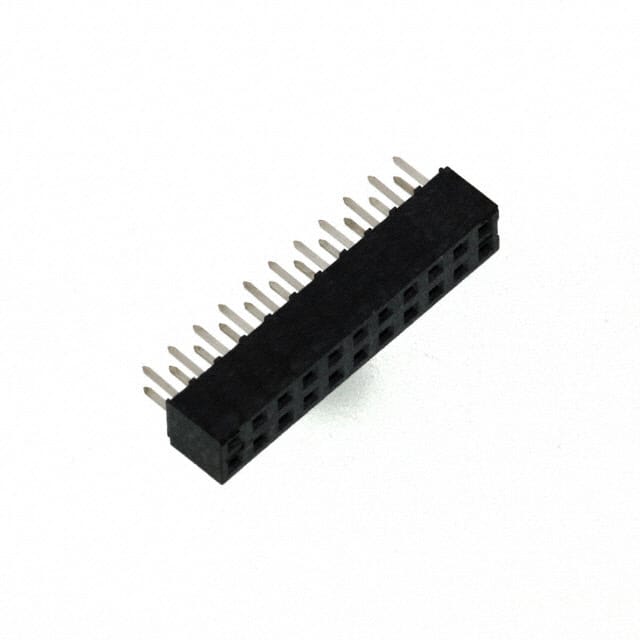

2.00毫米（ .079 “ ）间距的Milli-电网插座，垂直，通孔，双排， 3.00毫米（ 0.118 ），尾长 2.00mm .079" Pitch Milli-Grid Receptacle, Vertical, Through Hole, Dual Row, 3.00mm .118 Tail Length
22 Position Receptacle Connector Through Hole
得捷:
CONN RCPT 22POS 0.079 GOLD PCB
艾睿:
This socket strip 0791077010 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This RCP connector&s;s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 125 VAC. It has a receptacle type gender. This is a 2-row connector. Its pitch is 2 mm. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0791077010 is housed in black glass filled high temperature thermoplastic. This product is 22.19 mm long, 4.44 mm tall and 4.19 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.
安富利:
Conn Socket Strip RCP 22 POS 2mm Solder ST Thru-Hole Tube
