DFLS2100-7

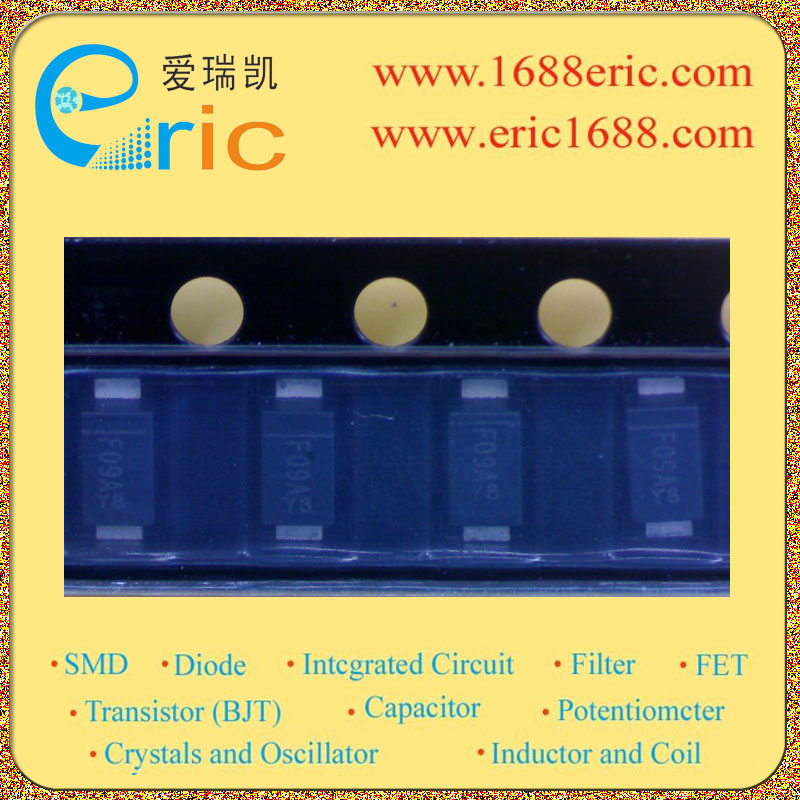

DFLS2100-7图片1

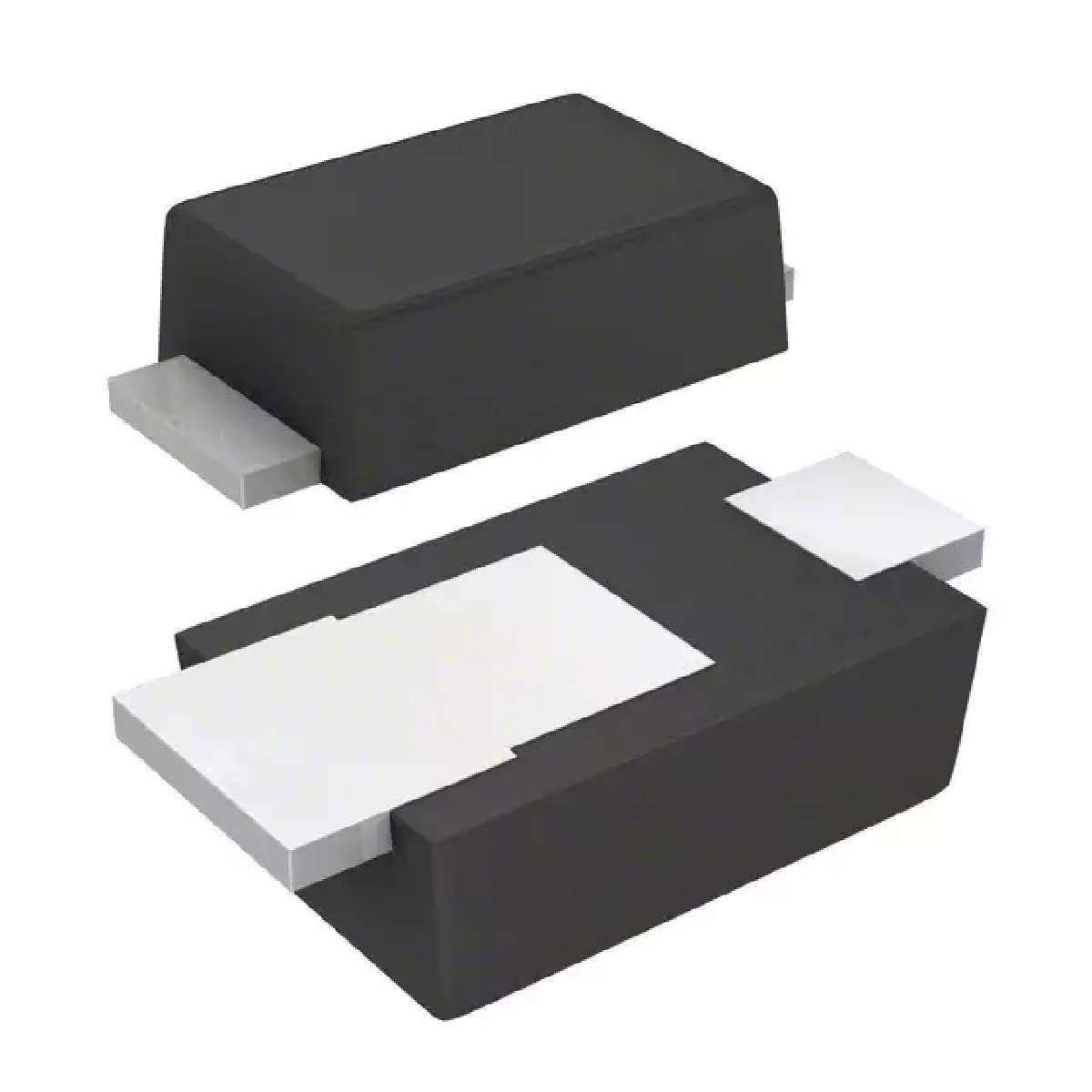

DFLS2100-7图片2
DFLS2100-7图片3
DFLS2100-7图片4
DFLS2100-7图片5
DFLS2100-7图片6
DFLS2100-7图片7
DFLS2100-7图片8
DFLS2100-7图片9
DFLS2100-7概述

DFLS2100 系列 100 V 2 A 表面贴装 肖特基 势垒 整流器 - 功率DI123

反向电压VrReverse Voltage | 100V \---|--- 平均整流电流IoAVerage Rectified Current | 2A 最大正向压降VFForward VoltageVf | 0.86 最大耗散功率PdPower dissipation | Description & Applications | 2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER .
.
Guard Ring Die Construction for Transient Protection . * Low Power Loss, High Efficiency. * Patented Interlocking Clip Design for High Surge Current Capacity. 描述与应用 | 2.0A高压肖特基整流器。 *保护环模施工瞬态保护。 *低功耗,高效率。 *专利联锁夹设计,高浪涌电流能力。

立创商城:
100V 2A 860mV@2A


得捷:
DIODE SCHOTTKY 100V 2A PWRDI123


e络盟:
肖特基整流器, 100 V, 单, PowerDI 123, 2 引脚, 860 mV


艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode DFLS2100-7 rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This rectifier has a minimum operating temperature of -55 °C and a maximum of 175 °C. Its peak non-repetitive surge current is 40 A, while its maximum continuous forward current is 2 A.


Allied Electronics:
2A 100V Schottky PowerDI123


安富利:
Diode Schottky 100V 2A 2-Pin PowerDI 123 T/R


Chip1Stop:
Diode Schottky 100V 2A Automotive 2-Pin PowerDI 123 T/R


Verical:
Diode Schottky 100V 2A Automotive 2-Pin PowerDI 123 T/R


Newark:
SCHOTTKY RECTIFIER, 2A, 100V, POWERDI123


儒卓力:
**SCHOTTKY-DIODE 100V 2A POWDI123 **


Win Source:
DIODE SCHOTTKY 100V POWERDI123


DFLS2100-7中文资料参数规格
技术参数

针脚数 2

正向电压 0.86 V

热阻 7℃/W RθJL

正向电流 2 A

最大正向浪涌电流(Ifsm) 50 A

正向电压Max 860 mV

正向电流Max 2000 mA

工作温度Max 175 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 POWERDI-123

外形尺寸

宽度 1.78 mm

高度 0.98 mm

封装 POWERDI-123

物理参数

工作温度 -55℃ ~ 175℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

DFLS2100-7引脚图与封装图
DFLS2100-7引脚图
DFLS2100-7封装焊盘图
在线购买DFLS2100-7
型号: DFLS2100-7
制造商: Diodes 美台
描述:DFLS2100 系列 100 V 2 A 表面贴装 肖特基 势垒 整流器 - 功率DI123
