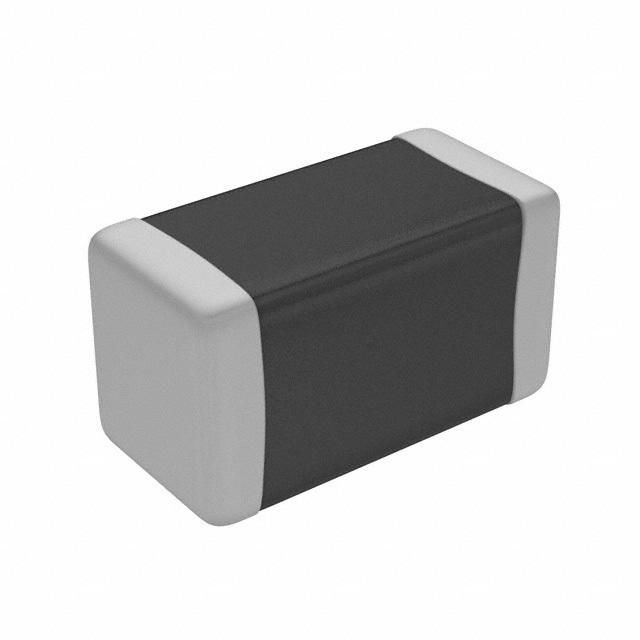

V68MLA1206H

LITTELFUSE  V68MLA1206H  TVS压敏电阻, MOV, ML系列, 50 V, 68 V, 130 V, 1206 [3216 公制], 多层压敏变阻器MLV

SMT 瞬态抑制器 - ML 系列

多层半导体陶瓷构造，提供双向钳位电压。 感应开关抑制或其它快速电气瞬态事件，使这些装置有利于实现成品的电磁兼容性。

适合于集成电路和晶体管的板载瞬态电压保护

在许多应用场合中可以代替较大的表面安装 TVS 齐纳管

得捷:
VARISTOR 83V 180A 1206

欧时:

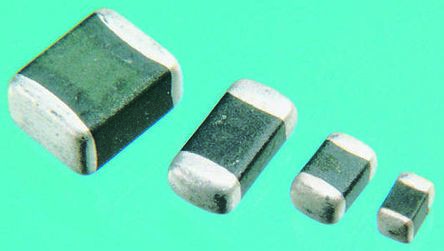

Littelfuse ML 系列 100pF 1A 140V 多层变阻器 V68MLA1206H, 1206 3216M封装, 3.2 x 1.6 x 1.8mm

贸泽:
压敏电阻 68V 180A 100pF

e络盟:
TVS压敏电阻, MOV, ML系列, 50 V, 68 V, 130 V, 1206 [3216 公制], 多层压敏变阻器MLV

艾睿:
Similar to a diode this V68MLA1206H MOV manufactured from Littelfuse is a nonlinear component. This device&s;s clamping current is 1 A and clamping voltage is 140 V. Its maximum surge current is 180 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. Its capacitance value is 150pF. This varistor has a voltage of 90 V. This device is made with multilayer technology. This product is 3.2 mm long, 1.8 mm tall and 1.6 mm deep. The maximum AC voltage rating is 50 VAC and the maximum DC voltage rating is 68 VDC.

Allied Electronics:
ML Series Multilayer Varistor 100pF 1A, Clamping 140V, Varistor 90V 1206 Case

Chip1Stop:
Var MLV 50VAC/68VDC 180A 90V 1206 SMD Automotive T/R

Verical:
Var MLV 50VAC/68VDC 180A 90V 1206 SMD T/R

Newark:
# LITTELFUSE  V68MLA1206H  Varistor, MOV, ML Series, 68 V, 180 A, 1206 [3216 Metric], Multilayer Varistor MLV, 130 V

儒卓力:
**VDR 1206 DC=68V CL=140V 1J **
