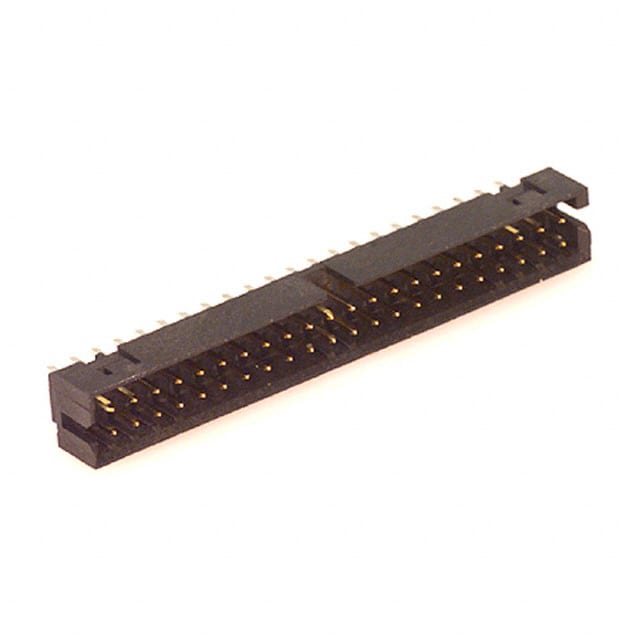

2.00毫米（ 0.079 ）间距的Milli-电网™接头，垂直，通孔，罩，无铅， 44电路， 0.38μm （ 15μ ），金（Au ）电镀，中心极化槽 2.00mm .079 Pitch Milli-Grid™ Header, Vertical, Through Hole, Shrouded, Lead-free, 44 Circuits, 0.38μm 15μ Gold Au Plating, Center Polarization Slot
针座 通孔 44 位置 0.079"（2.00mm）
得捷:
CONN HEADER VERT 44POS 2MM
艾睿:
As an added safety precaution, the shrouded 0878314420 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 44 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 125 V. It has a header type gender. Its pitch is 2 mm. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 46.65 mm long, 6.4 mm tall and 6.3 mm deep. 0878314420 is housed in black nylon 4/6. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.
安富利:
Conn Shrouded Header HDR 44 POS 2mm Solder ST Thru-Hole Tube
Chip1Stop:
Conn Shrouded Header HDR 44 POS 2mm Solder ST Thru-Hole Tube
