BI 2U-EG08-AN6X

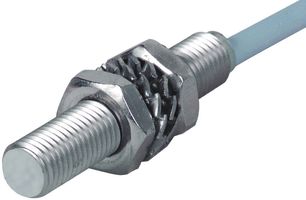

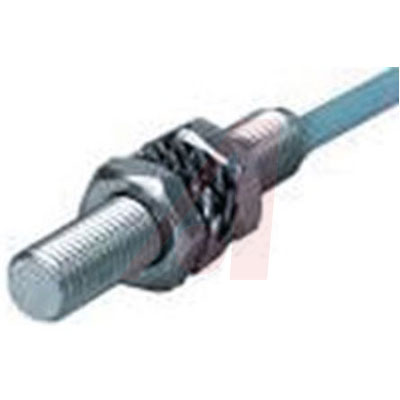

TURCK BI 2U-EG08-AN6X Inductive Proximity Sensor, Cylindrical, Embeddable, Uprox, M8, 2mm, NPN, 10-30V, Pre-wired

**Features:**

* Choice of Barrel with Potted-In Cable or M8 **_picofast_**®, M12 **_eurofast_**® Quick-Disconnect

* Short-Circuit and Overload Protection Incorporated

* Reverse Polarity and Wire-Break Protection

* LEDs Indicate: Output Energized and Short-Circuit Warning

* Normally Open Output **Specifications:**

* Environment Rating: NEMA 1, 3, 4, 4X, 6, 13; IP68

* Operating Temperature: –22°F to +185°F

* Continuous Load Current: 200 mA Max.

* Voltage Drop: 1.8 VDC at 200 mA
