2.54mm 方针

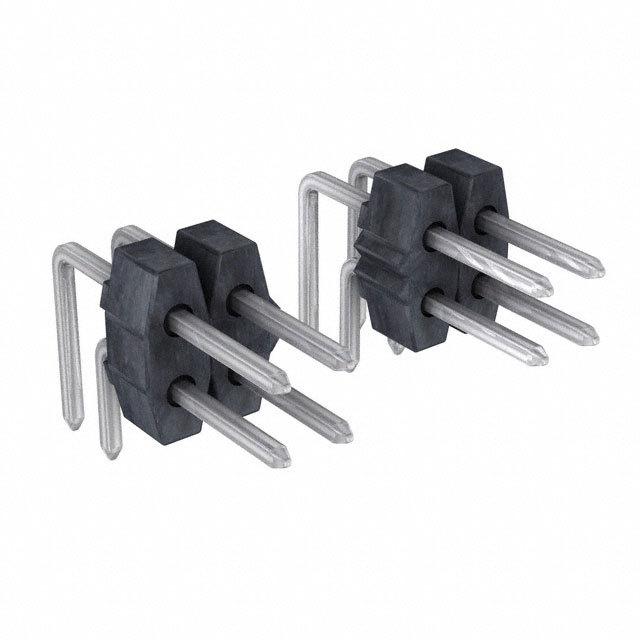

Connector Header Through Hole, Right Angle 24 position 0.100" 2.54mm
得捷:
CONN HEADER R/A 24POS 2.54MM
立创商城:
2.54mm 方针
艾睿:
Use this unshrouded 0901220132 connector from Molex when board-to-board interconnects is required. This HDR connector&s;s 24 contacts that are made out of brass and plated with tin over nickel. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 350 V. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 30.48 mm long, 6.15 mm tall and 13.54 mm deep. 0901220132 is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
