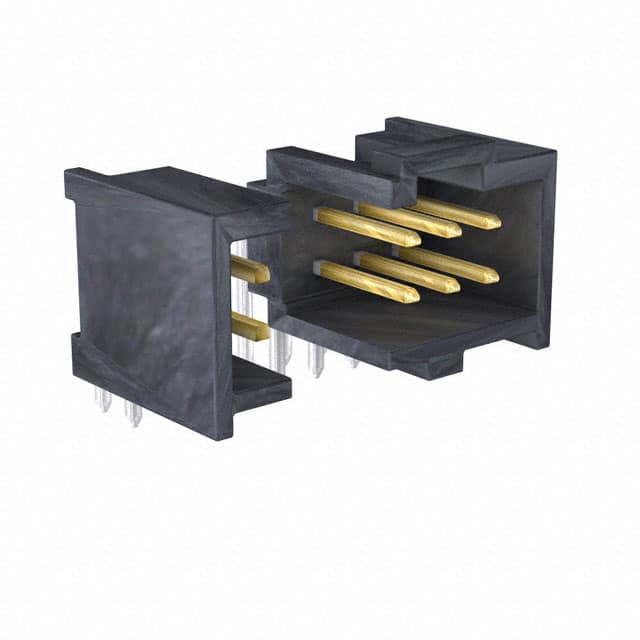

2.54毫米（ .100 ）间距C-电网III ™接头，双排，直角，带罩，满载， 16电路，黑0.38μm （ 15μ ），金（Au ）选择性电镀 2.54mm .100 Pitch C-Grid III™ Header, Dual Row, Right Angle, Shrouded, Fully Loaded, 16 Circuits, Black 0.38μm 15μ Gold Au Selective Plating
针座 通孔，直角 16 位置 0.100"（2.54mm）
得捷:
CONN HEADER R/A 16POS 2.54MM
艾睿:
Easily mount this shrouded 0901303216 header connector from Molex onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 16 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 350 VDC|350VAC. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. This connector has an operating temperature of -55 to 125 °C. 0901303216 is housed in black polyester. This product is 23.04 mm long, 9.75 mm tall and 13.04 mm deep. It uses the solder termination method.
安富利:
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray
Chip1Stop:
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray
