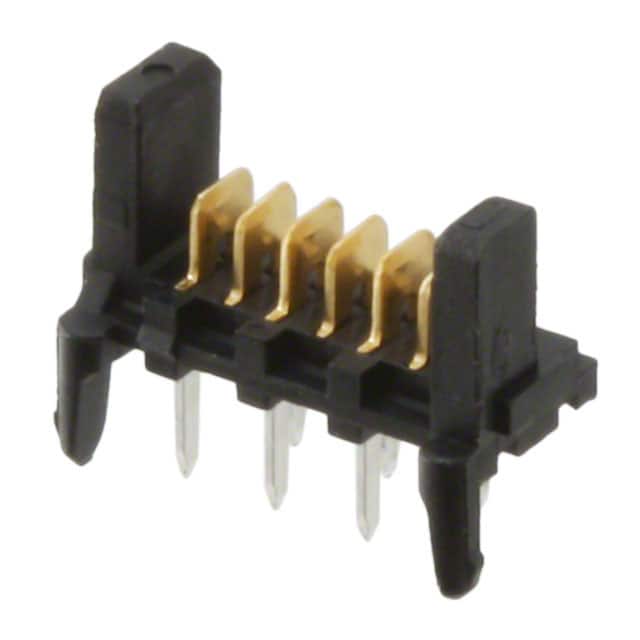

1.27毫米（ .050 ）间距Picoflex® PF- 50接头，垂直，扁平，与PCB螺钉， 6电路，软管包装 1.27mm .050 Pitch Picoflex® PF-50 Header, Vertical, Low Profile, with PCB Pegs, 6 Circuits, Tube Packaging
针座连接器 通孔 6 位置 0.050"（1.27mm）
得捷:
CONN HEADER VERT 6POS 1.27MM
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this picoflex 0903257006 header connector from Molex. This HDR connector&s;s 6 contacts that are made out of brass and plated with gold over palladium nickel. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 250 V. This is a 1-row connector. Its pitch is 1.27 mm. This device has a maximum current rating of 1.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0903257006 is housed in black glass filled polybutylene terephthalate. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 11.86 mm long, 6.4 mm tall and 5.98 mm deep.
Verical:
Conn Picoflex HDR 6 POS 1.27mm Solder ST Thru-Hole Picoflex® Tube
